Create a Flat Download Button

In the following tutorial you will learn how to create a flat download button in Graphic for iPhone.

For starters you will learn how to setup a simple grid and how to create the cloud shape using basic tools and vector shape building techniques. Next, you'll learn how to create the main button shape and how to add subtle shading and highlights for your objects.

Finally, you will learn how to create a simple piece of text and how to stylize it.

Step 1

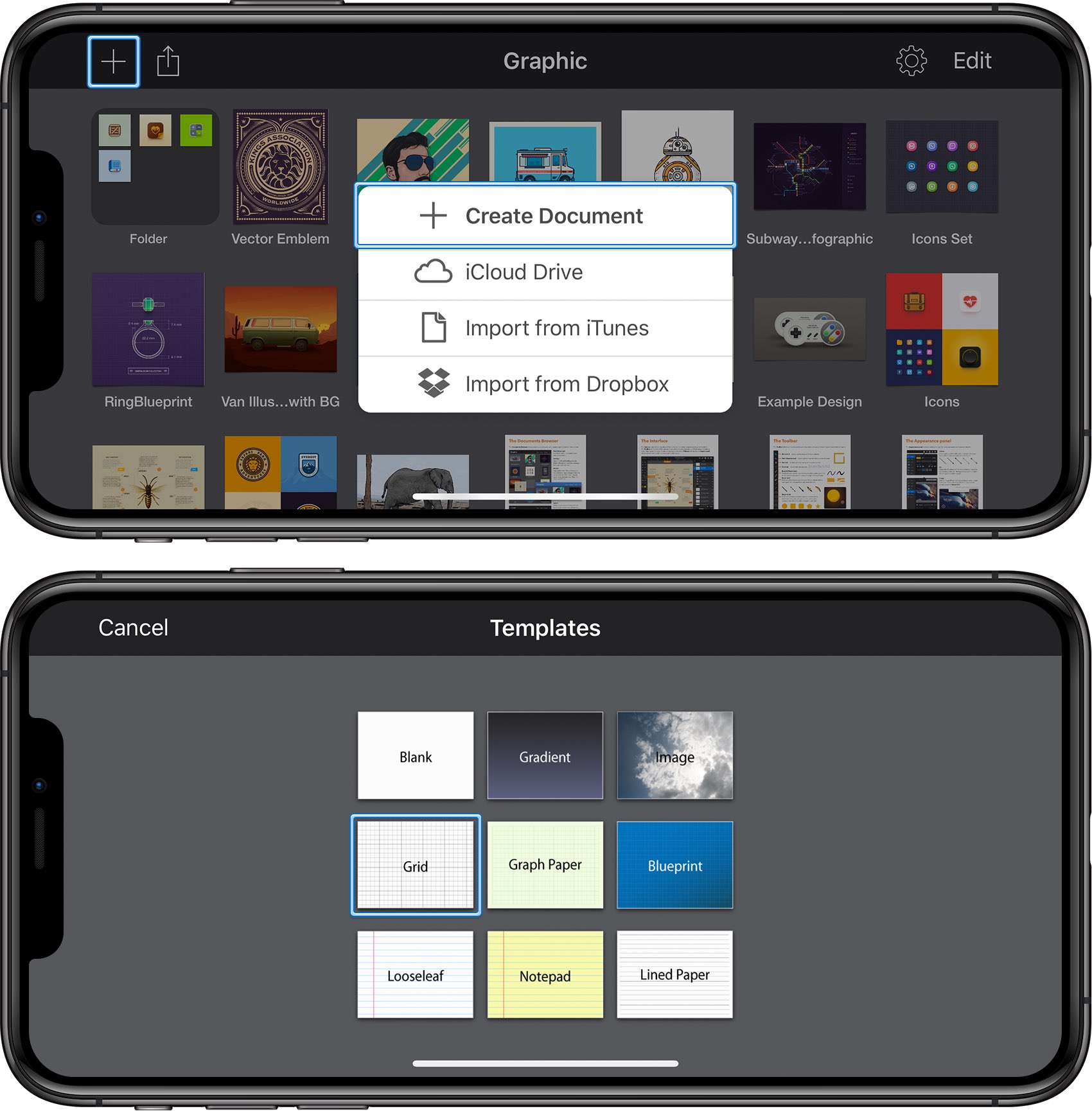

Start by tapping the plus button from the top-left corner of your screen to create a new document. Tap the Create Document button and then choose the Grid document style.

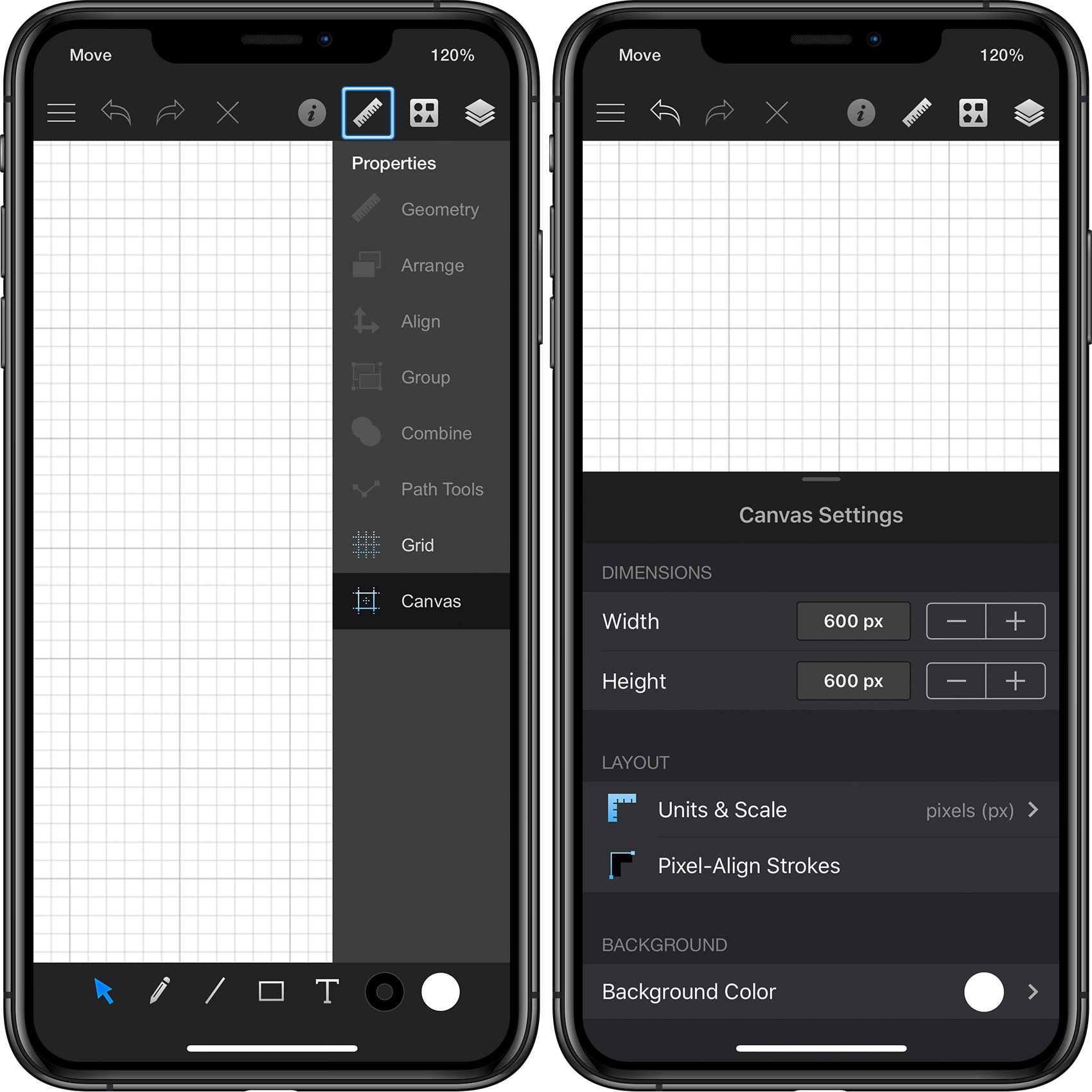

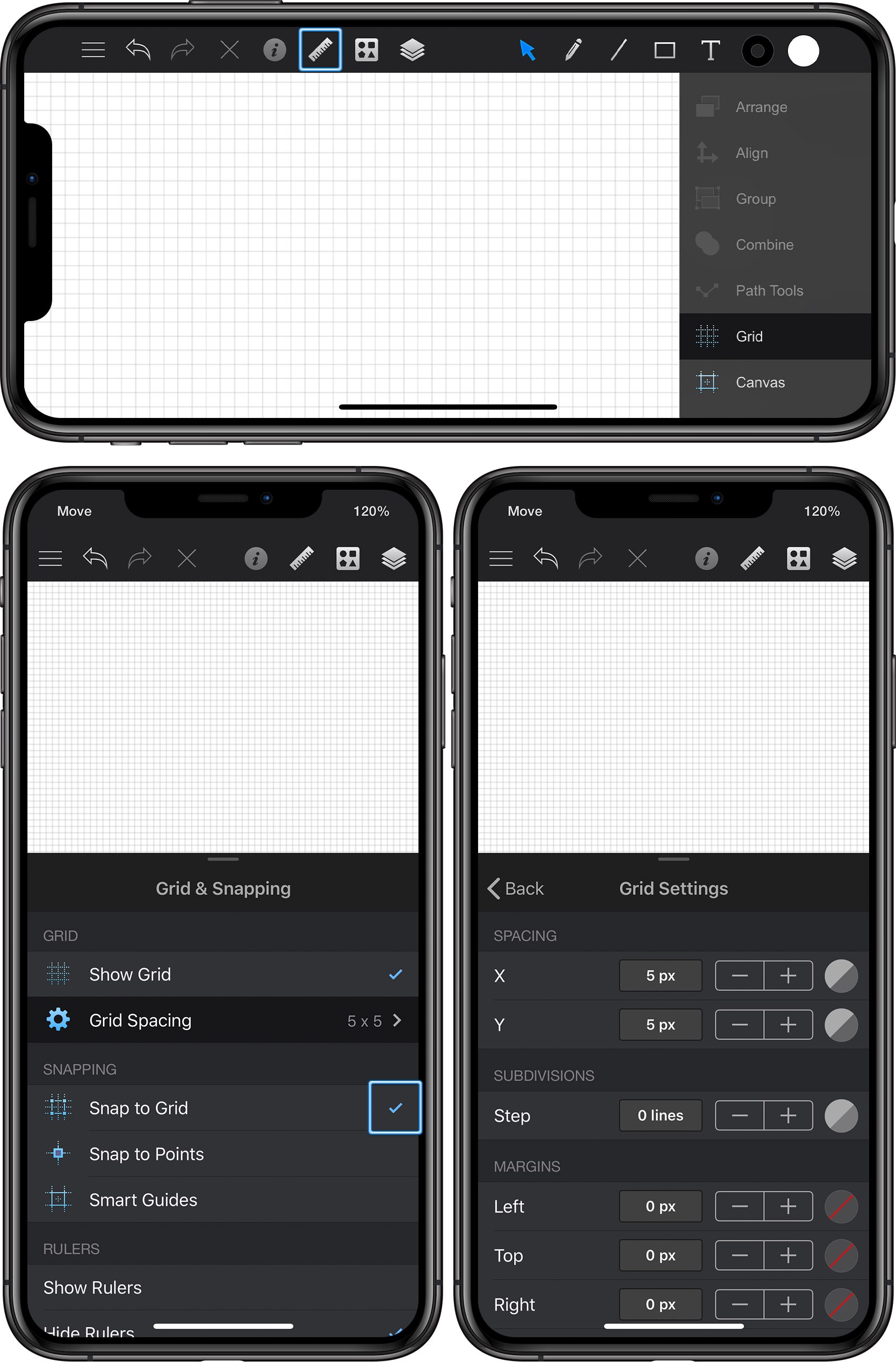

Focus on the right side of the Titlebar, tap that ruler icon to open the Properties panel and then tap the Canvas pane. Set both Width and Height to 600 px, select Pixels for the base unit, and be disabled.

Re-open the Properties panel and this time open sure that the Pixel-Align Strokes feature is the Grid pane. Make sure that the Snap to Grid feature is enabled and keep in mind that this is where you should come whenever you wish to enable or disable the grid or the Snap to Grid. Finally, open the Grid Settings pane and enter 5 px in both Spacing boxes and 0 lines in the Subdivisions box.

Step 2

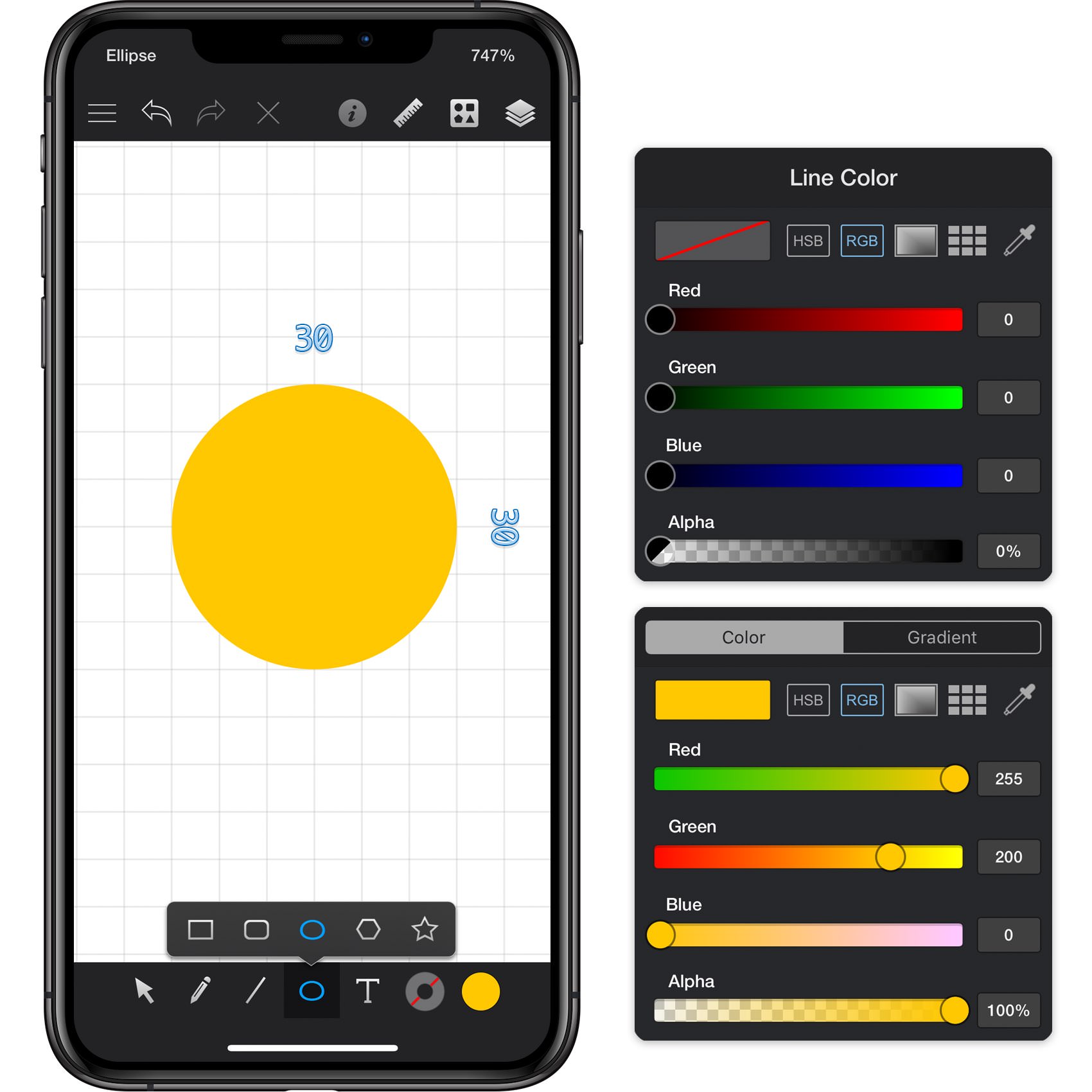

Focus on the Toolbar and notice that by default the Fill color is set to white while the Line color is set to black. Tap the Fill color well and set its color to R=255 G=215 B=0 and then tap the Line color well. Drag the Alpha slider to 0% and this will simply make your line invisible.

Pick the Ellipse Tool and create a 30 px shape - the grid and the Snap to Grid feature will ease your work.

Step 3

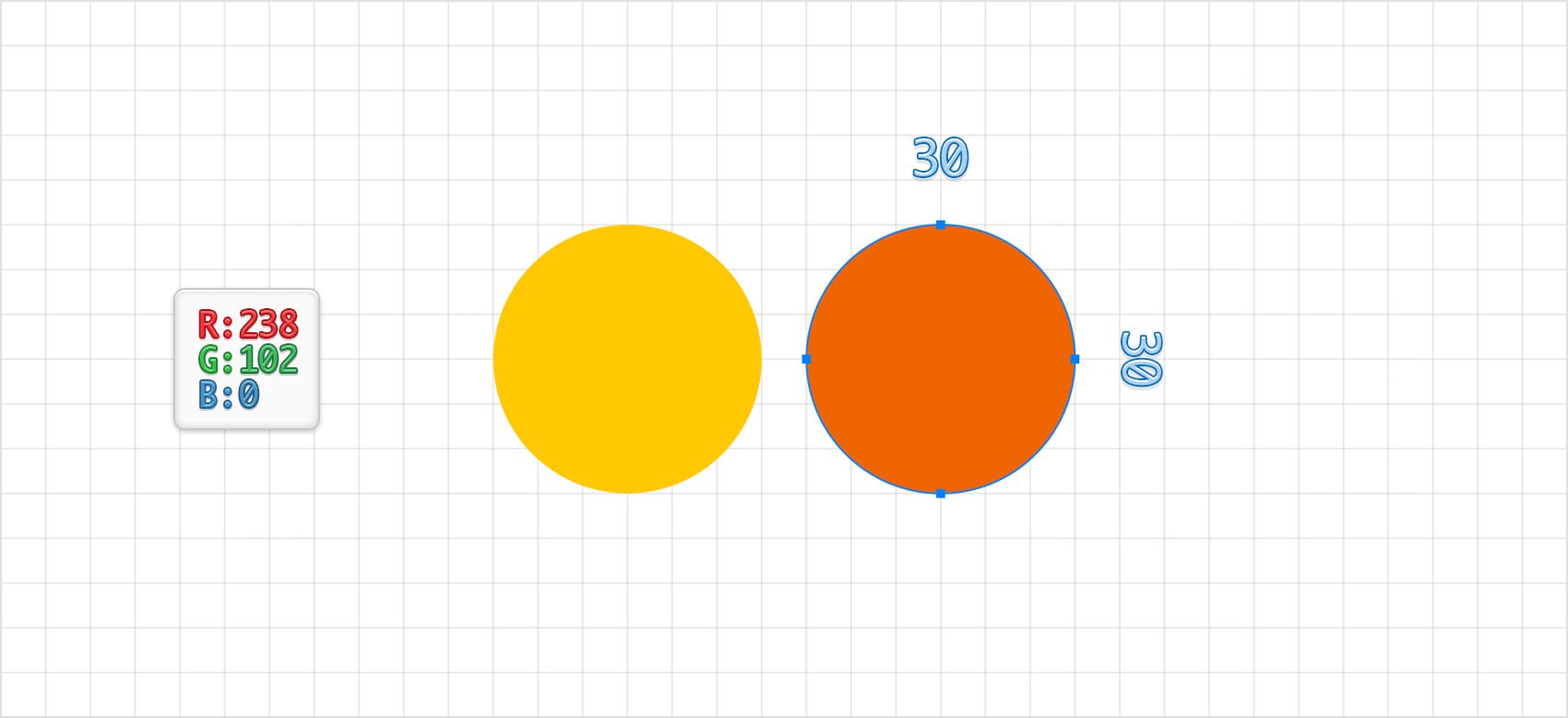

Set the Fill color to R=238 G=102 B=0 and make sure that the Ellipse Tool is still active. Create a second, 30 px circle and place it exactly as shown in the following image.

Step 4

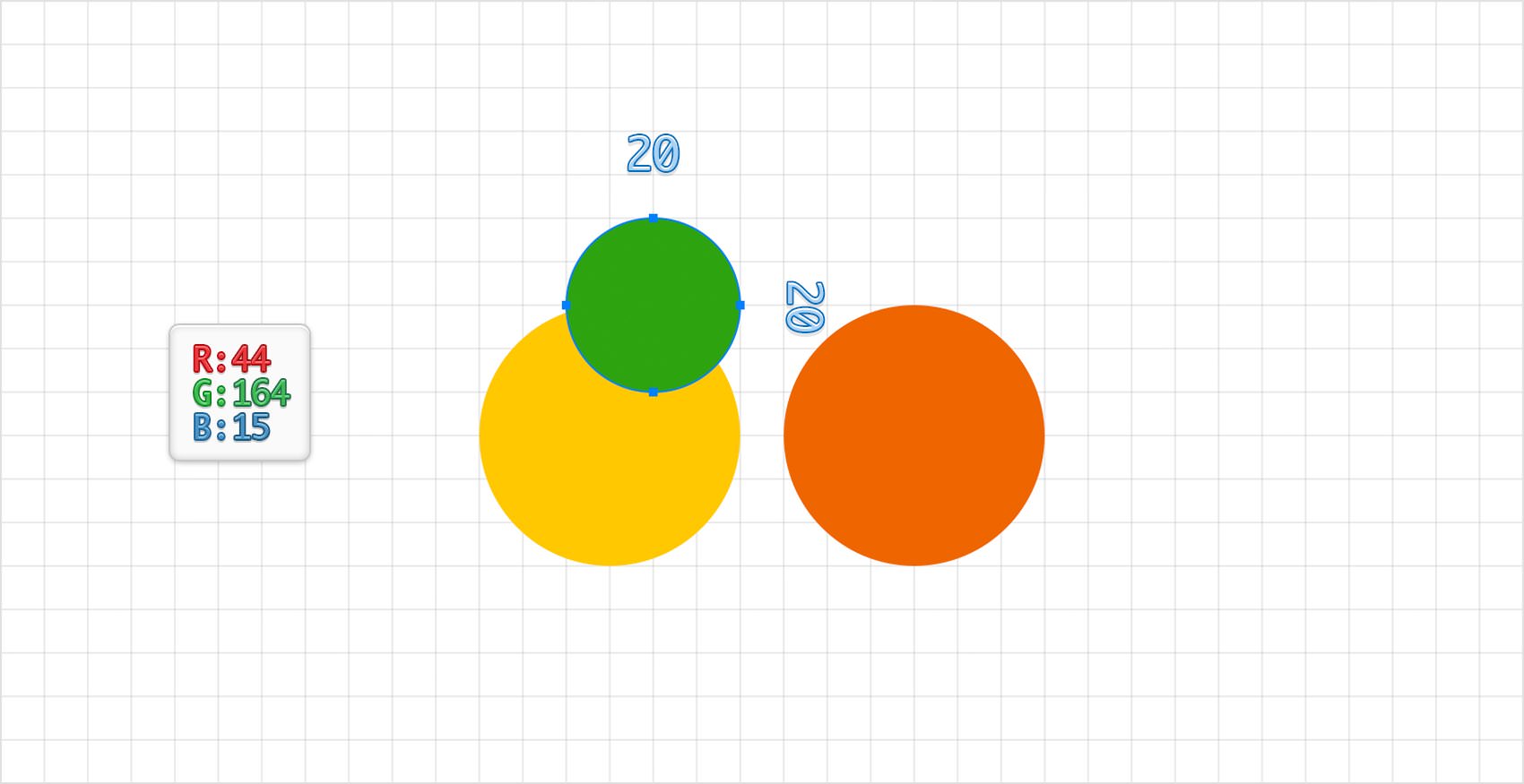

Set the Fill color to R=44 G=164 B=15, make sure that the Ellipse Tool is still active, create a 20 px circle and place it exactly as shown in the following image.

Step 5

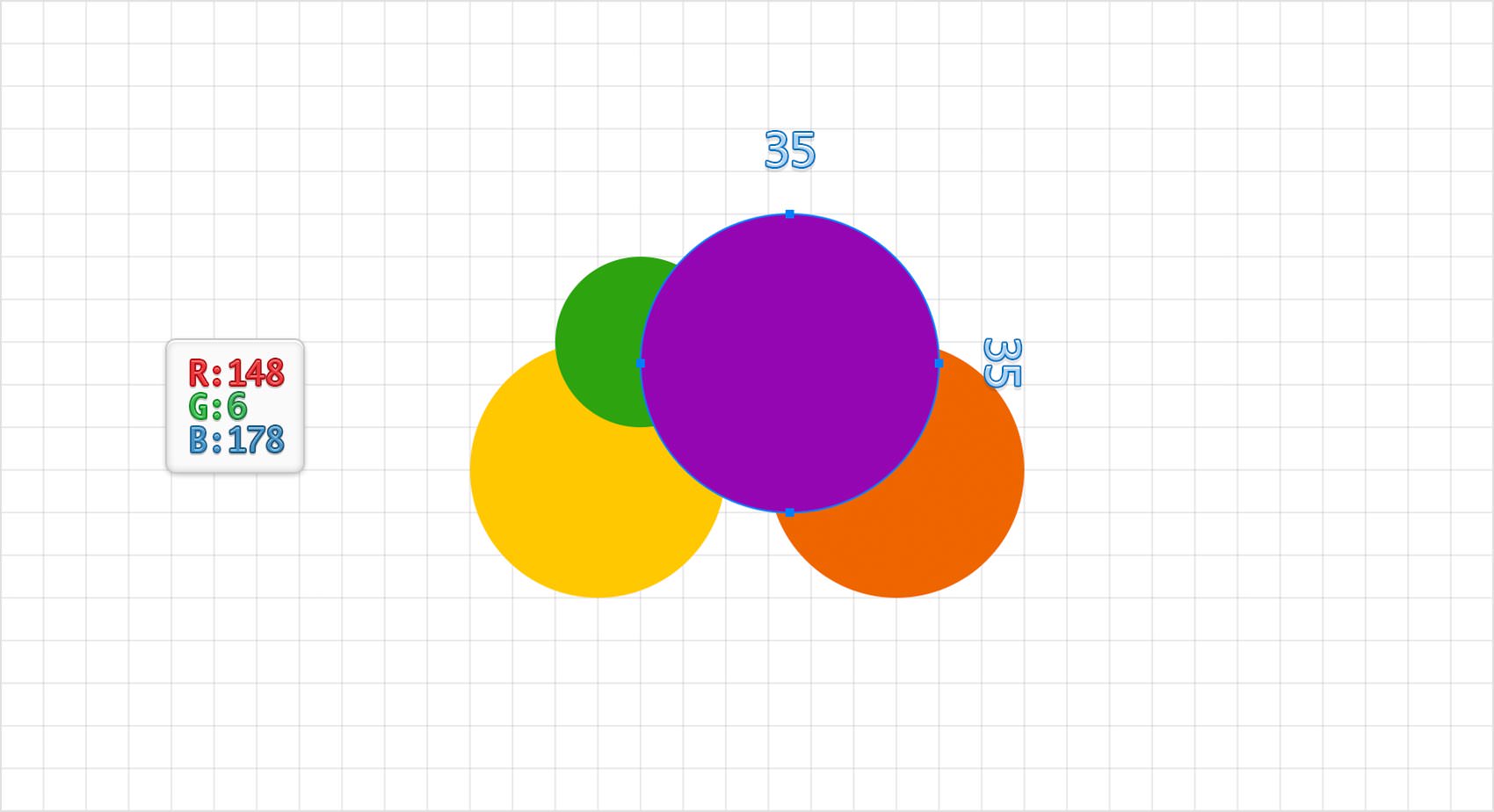

Set the Fill color to R=148 G=6 B=178, make sure that the Ellipse Tool is still active, create a 35 px circle and place it exactly as shown in the following image.

Step 6

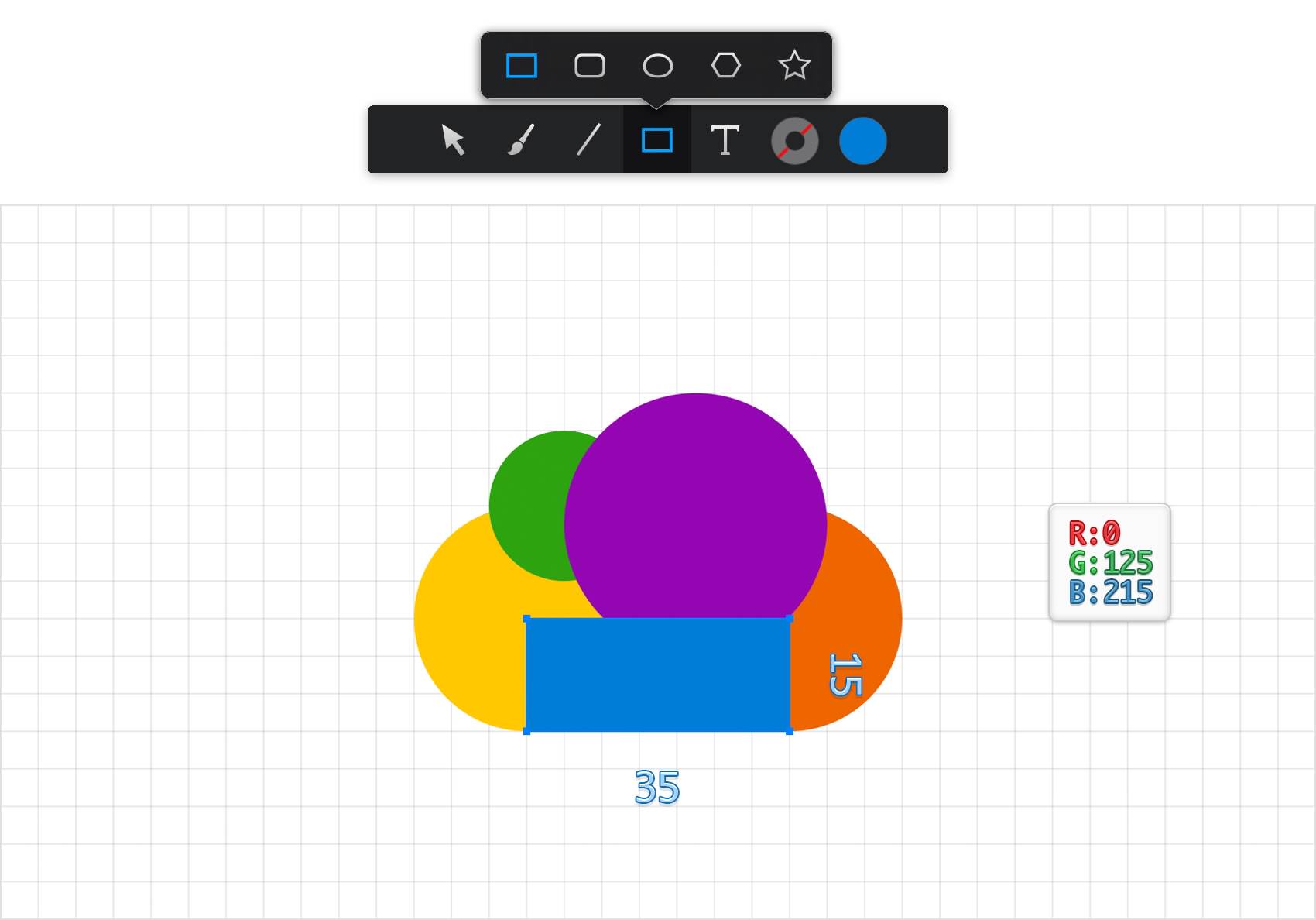

Set the Fill color to R=0 G=125 B=215, pick the Rectangle Tool, create a 35 x 15 px shape and place it exactly as shown in the following image.

Step 7

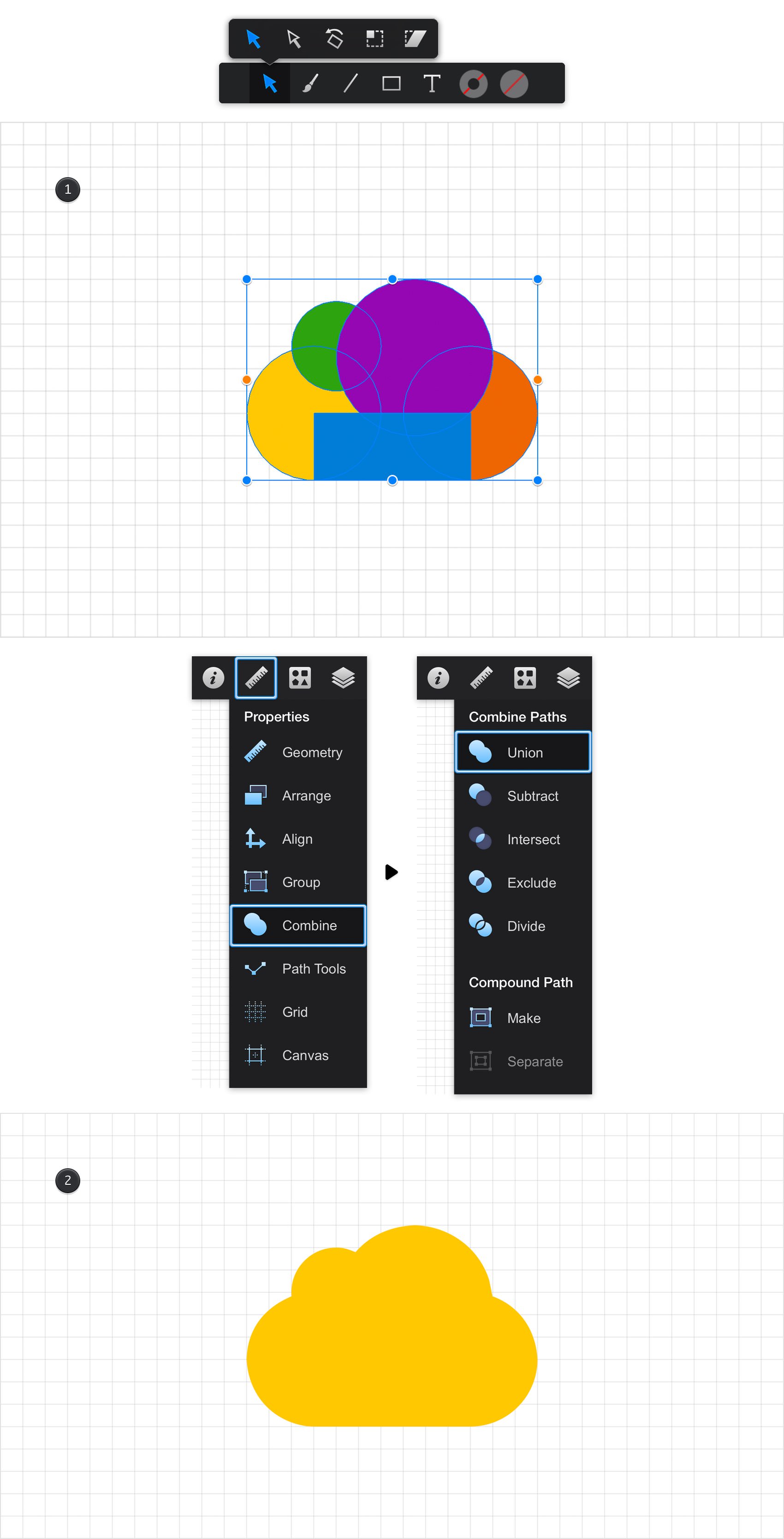

Using the Move Tool, select all the shapes made so far and focus on the right side of yout Titlebar. Tap again that ruler icon to open the Properties slide panel, go to the Combine pane and tap the Union button.

Step 8

Now, you will need a grid every 1 px which simply means that you need to return to the Grid pane from the Properties panel, open the Grid Settings pane and enter 1 px in both Spacing boxes. Return to your Toolbar, remove the color from the Fill and then tap the Line and set its color to R=0 G=125 B=215.

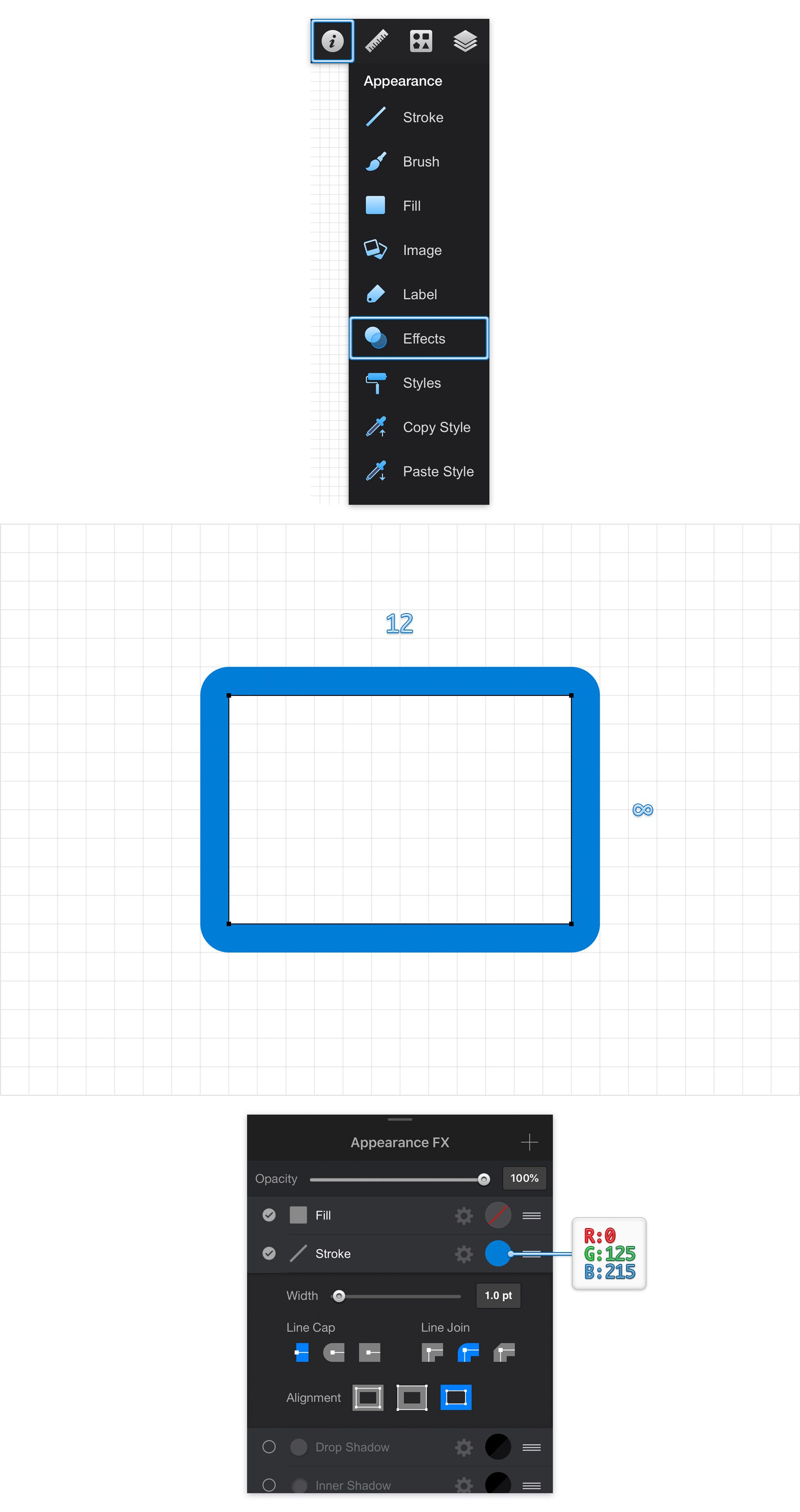

Pick the Rectangle Tool and create a 12 x 8 px shape. Make sure that this new rectangle stays selected, tap the leftmost icon from the right side of your Titlebar and go to the Effects pane. Focus on the existing stroke, set the Width to 1 pt and then tap the Outside Alignment and Round Join buttons. In the end your blue path should look like in the following image.

Step 9

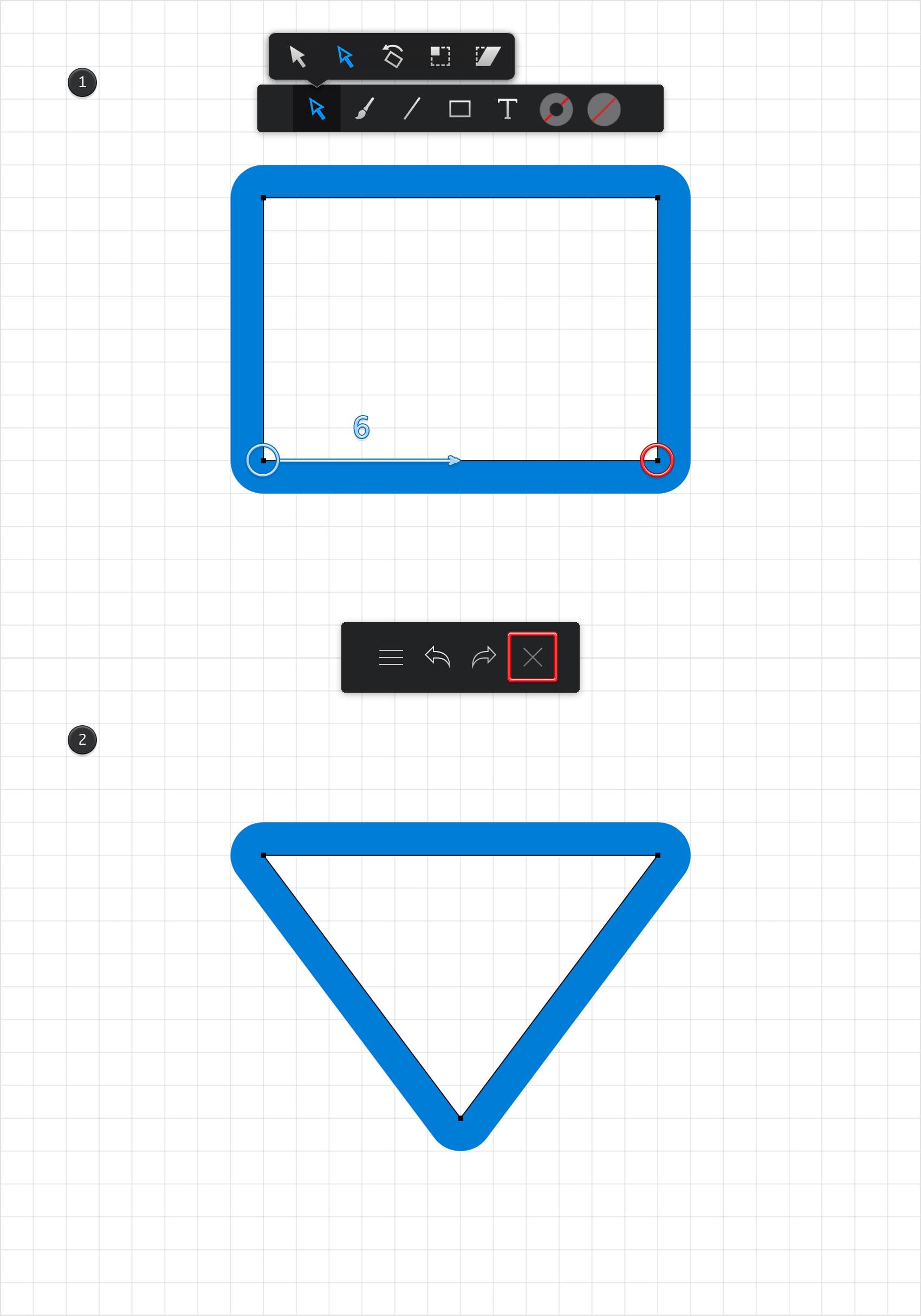

Pick the Path Selection Tool and focus on the bottom side of your blue rectangle. Select the right anchor point and simply tap the X button from the left side of your Titlebar to remove it.

Select the remaining, bottom anchor point and drag it 6 px to the right as shown in the second image. In the end this should turn your rectangle into a triangle.

Step 10

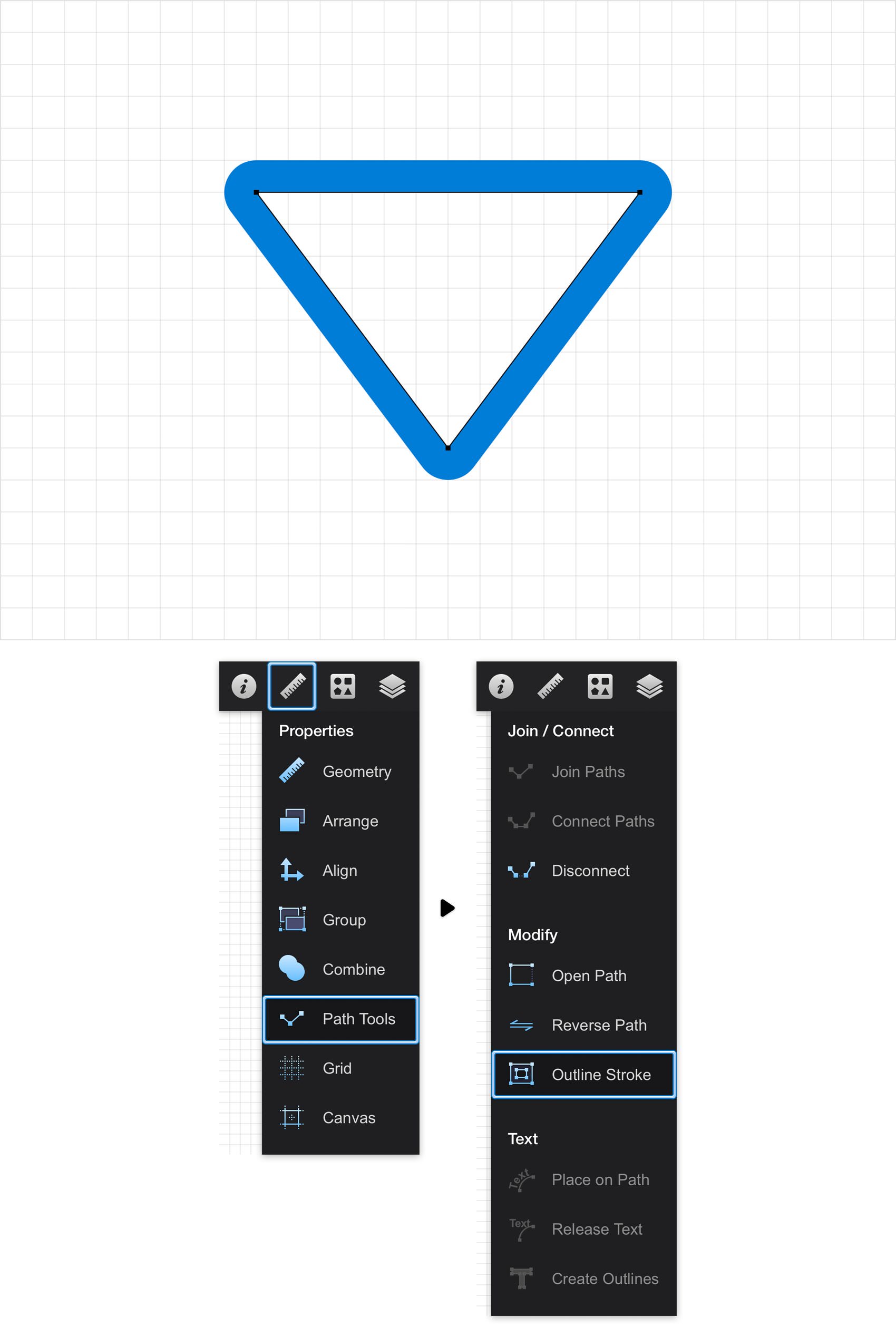

Make sure that your triangle is still selected, open the Path Tools pane from the Properties panel and tap the Outline Stroke button.

Step 11

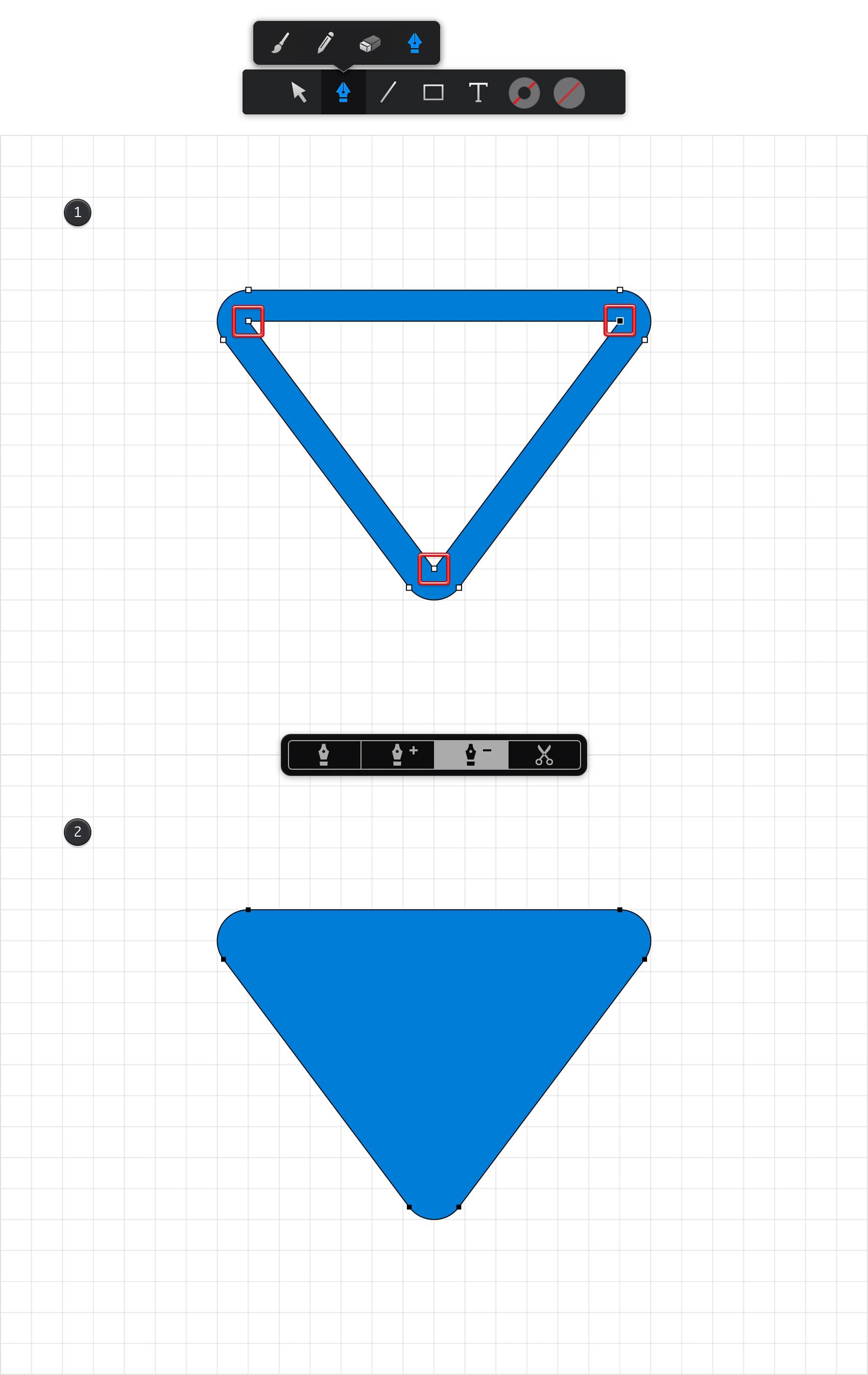

Select the Pen Tool, focus on the newly opened tool pane and activate the Delete Points mode. Return to your blue triangle and simply tap the three, inner anchor points to remove them.

Step 12

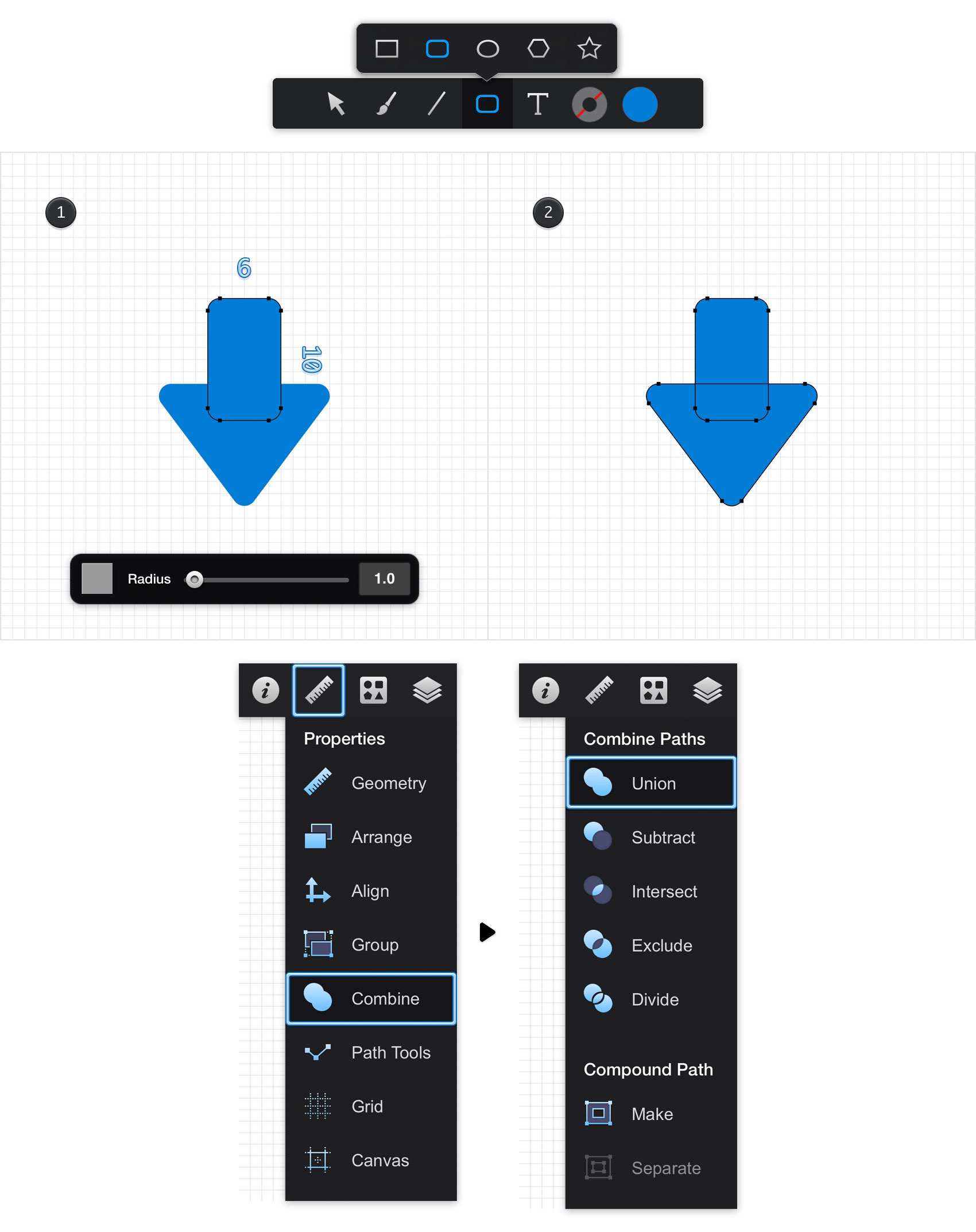

Pick the Rounded Rectangle Tool and set the Radius to 1. Move to your canvas, create a 6 x 10 px shape and place it exactly as shown in the first image. Select this rounded rectangle along with the triangle and simply tap the Union button from the Combine pane.

Step 13

Using the Move Tool, select your blue arrow and place it roughly as shown in the following image.

Step 14

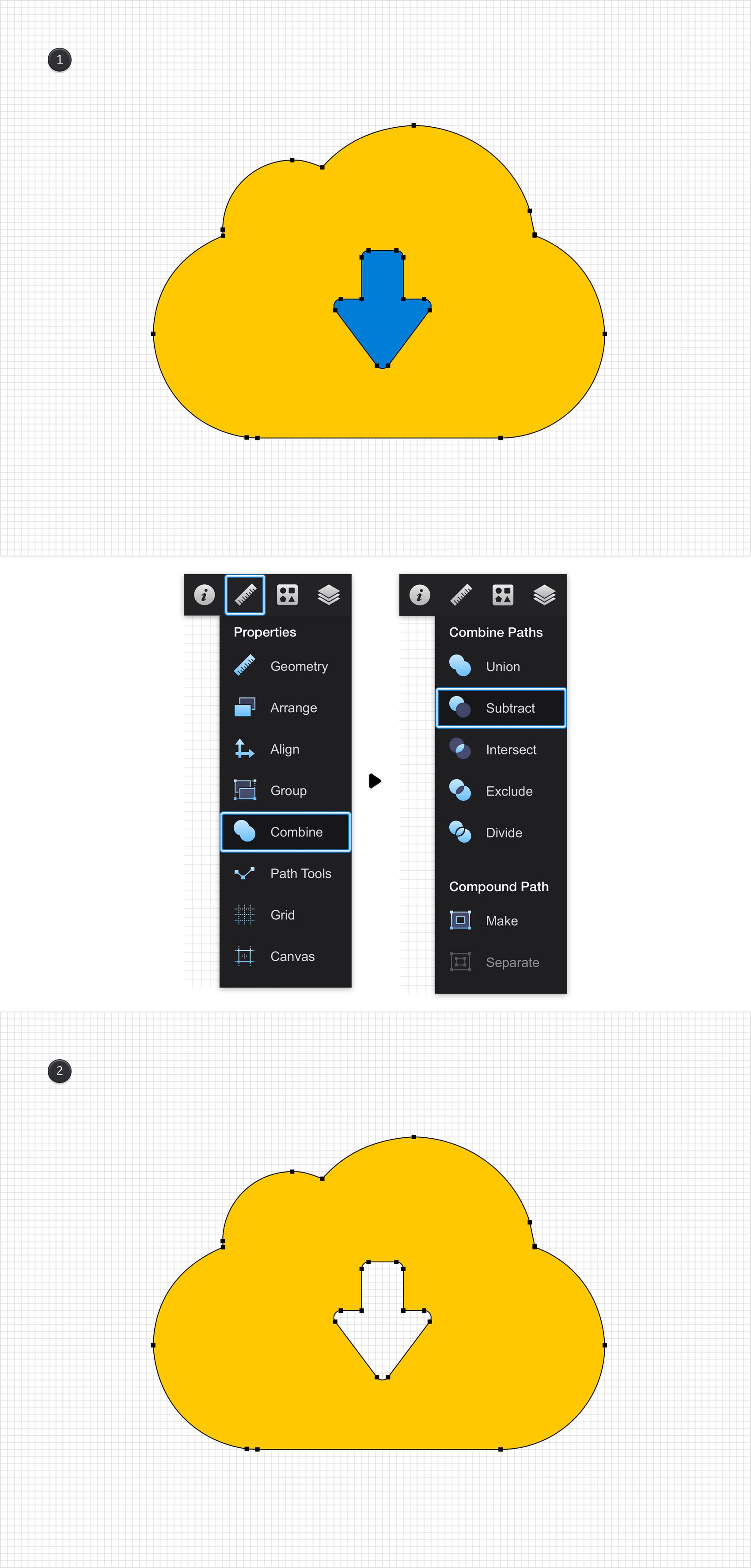

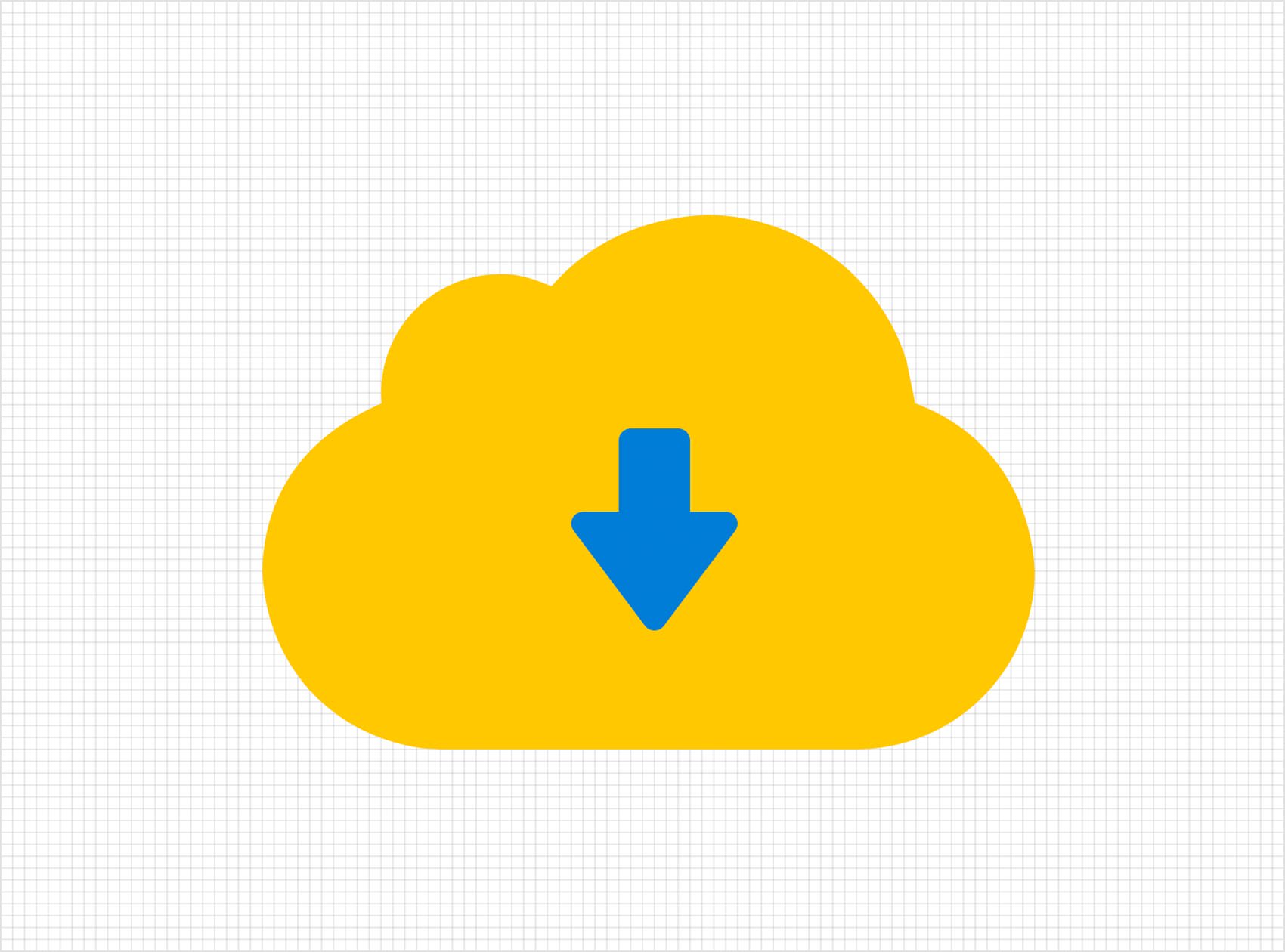

Reselect your blue arrow along with the yellow cloud and simply tap the Subtract button from the Combine pane.

Step 15

For this step you will need a grid every 5 px. Return to the Grid pane from the Properties panel, open the Grid Settings pane and enter 5 px in both Spacing boxes.

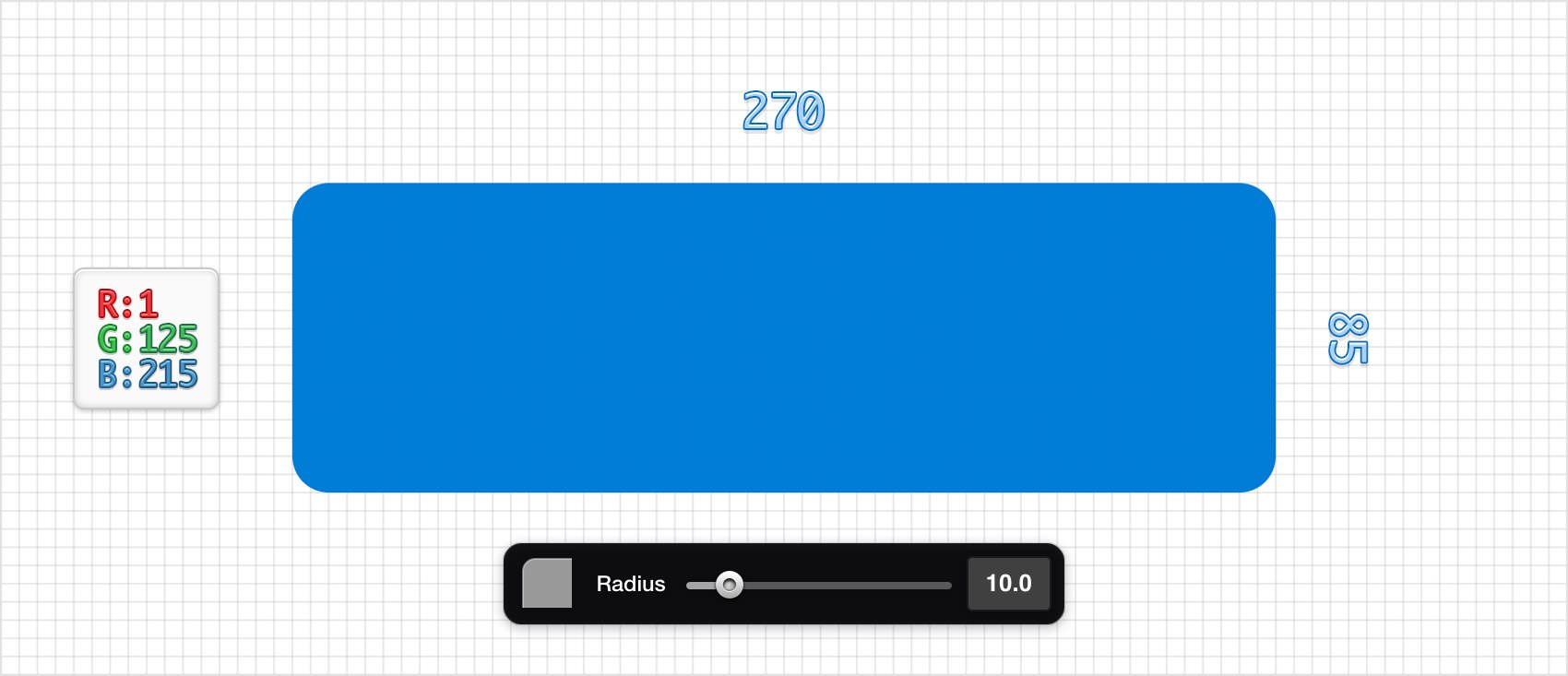

Focus on your Toolbar, remove the color from the Line and then select the Fill and set its color to R=1 G=125 B=215. Pick the Rounded Rectangle Tool, set the Radius to 10 and create a 270 x 85 px shape.

Step 16

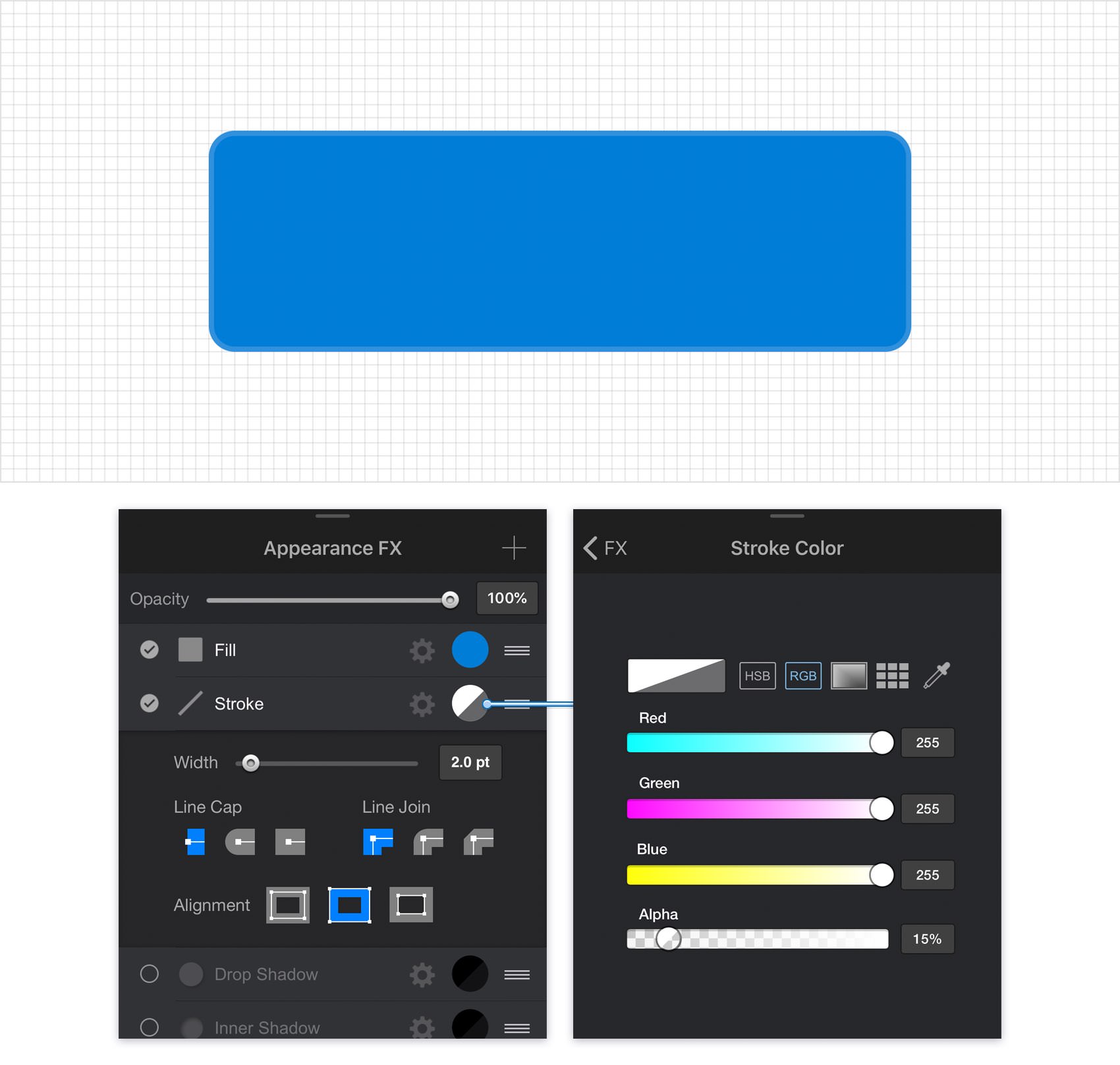

Make sure that your rounded rectangle stays selected and go to the Effects pane from the Appearance panel. Focus on the existing Stroke, set the Width to 2 pt, tap the Inside Alignment button and then simply tap the color well that stands for your stroke. Replace the existing color with white (R=255 G=2555 B=255) and drag the Alpha slider to 15%.

Step 17

Make sure that your rounded rectangle stays selected and keep focusing on the Effects pane.

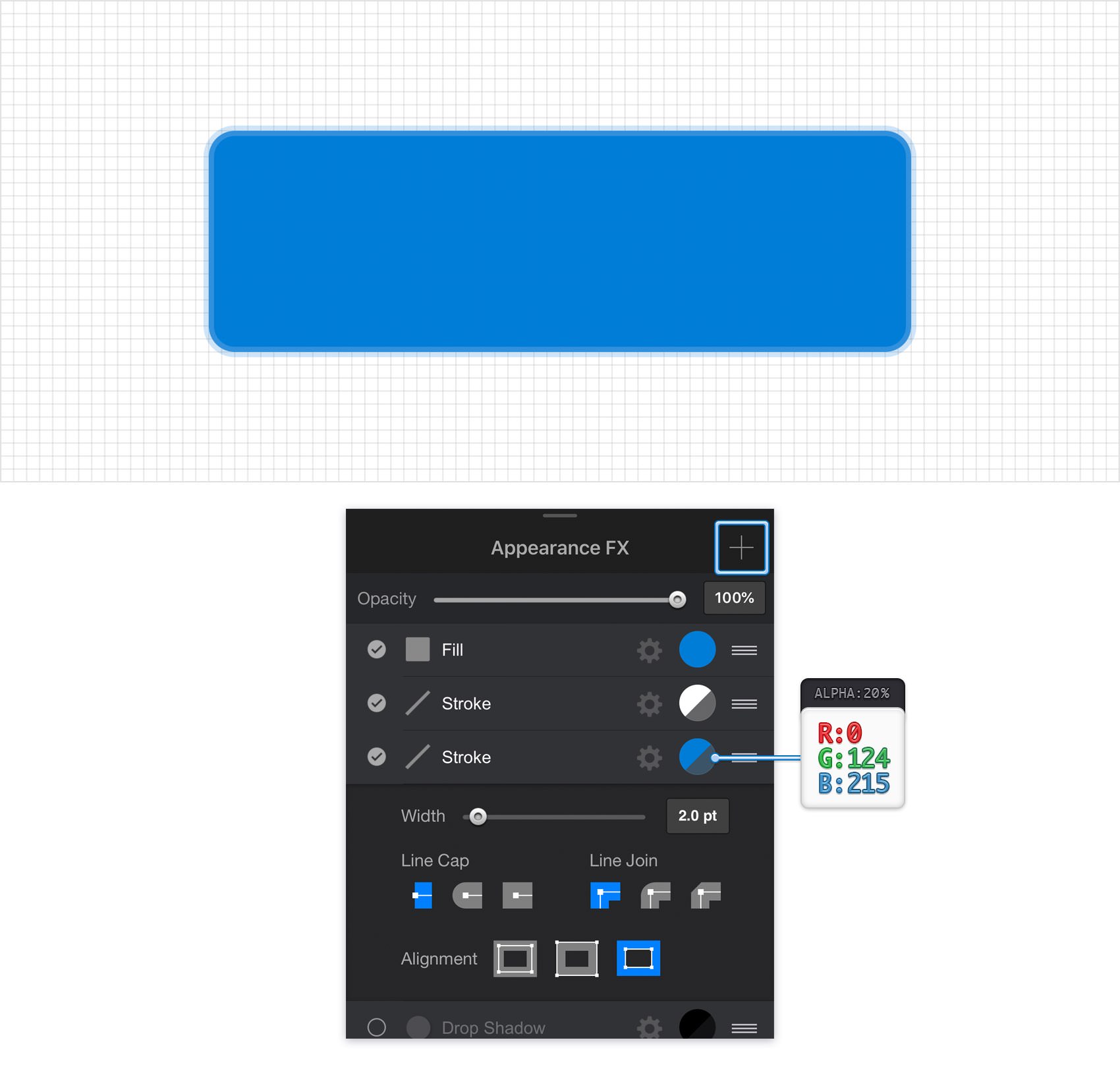

Simply tap that plus icon from the top, right corner of your pane and add a second stroke for your shape. Select it, and enter the attributes shown in the following image.

Step 18

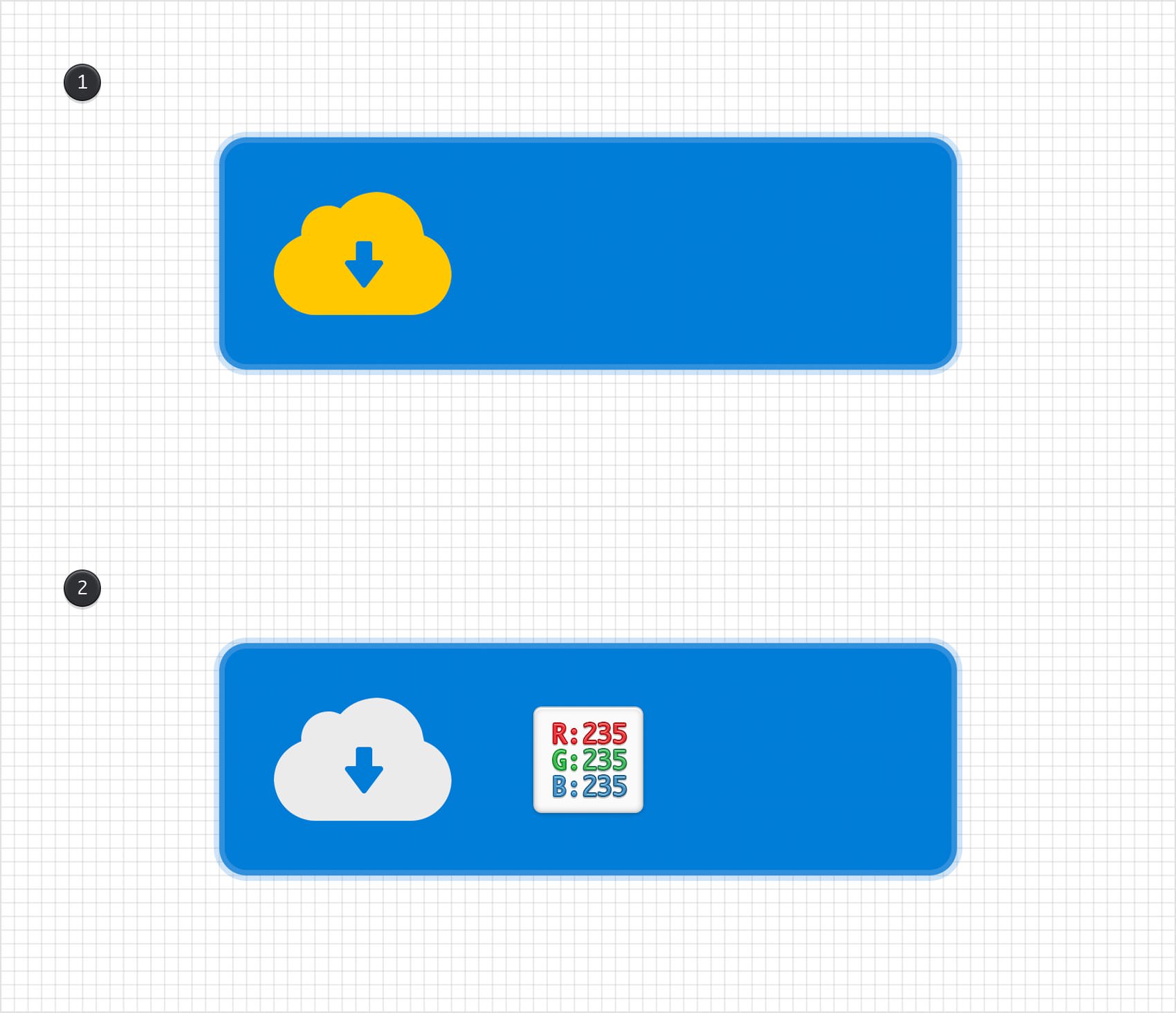

Using the Move Tool, reselect your cloud icon and place it as shown in the first image. Make sure that it stays selected and replace the existing fill color with R=235 G=235 B=235.

Step 19

Make sure that your cloud icon stays selected and focus on the Effects pane.

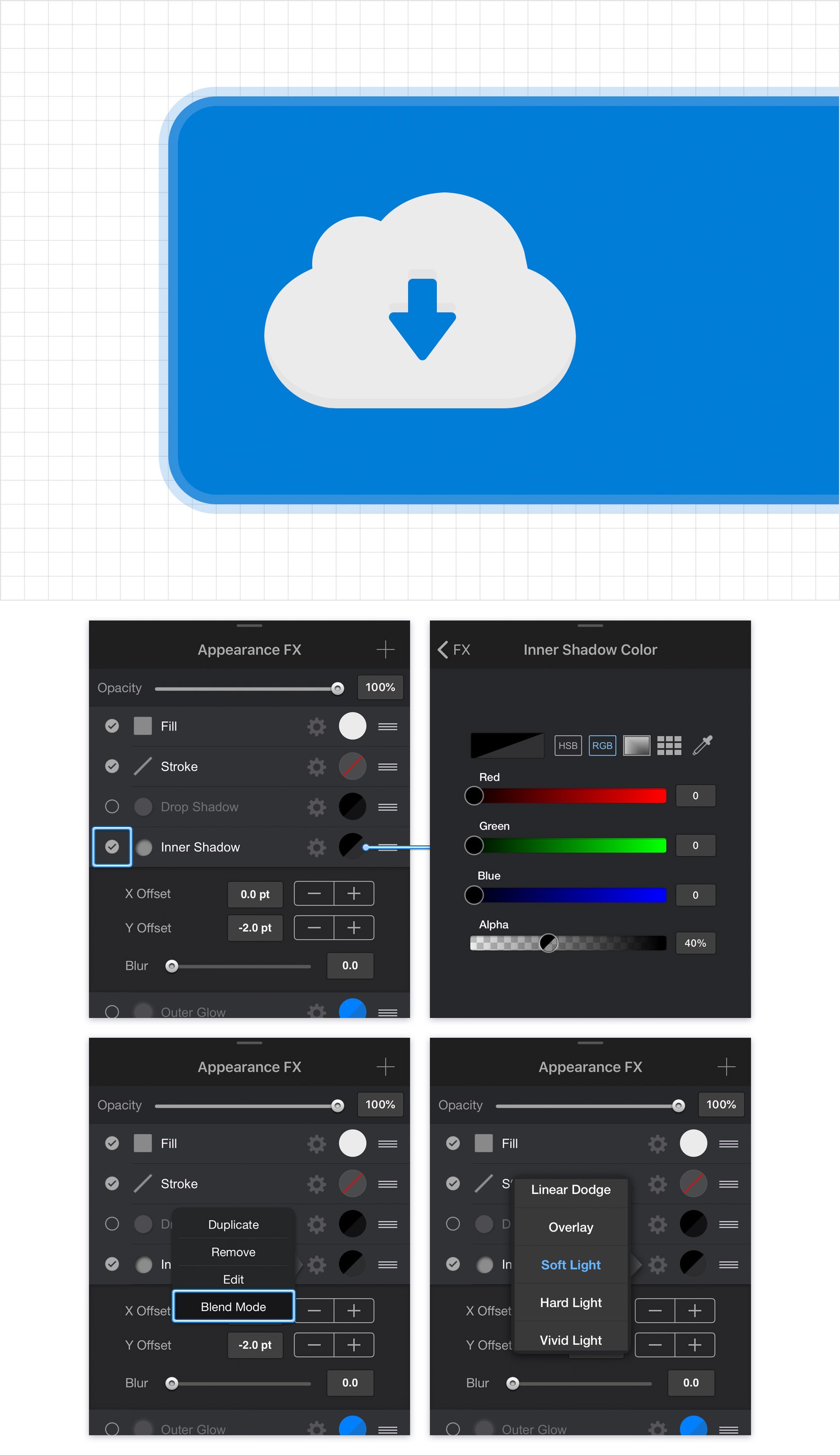

Activate the existing Inner Shadow and select it. Enter -2 pt in the Y Offset box and 0 pt in the other two boxes. Next, tap the color well that stands for this effect, make sure that the color is set to black and drag the Alpha slider to 40%. Finally, tap the cogwheel icon that stands for your Inner Shadow, tap Blend Mode and select Soft Light.

Step 20

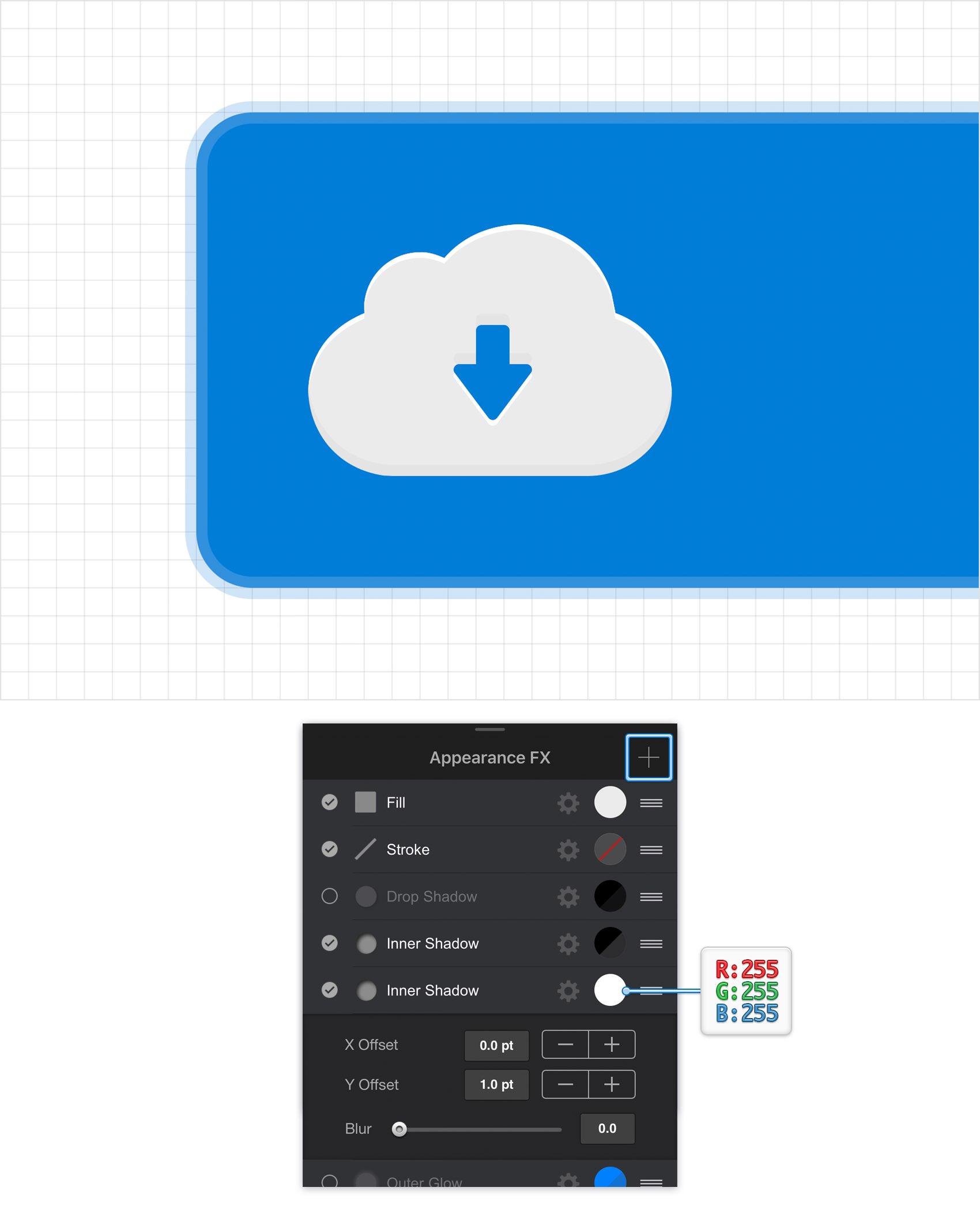

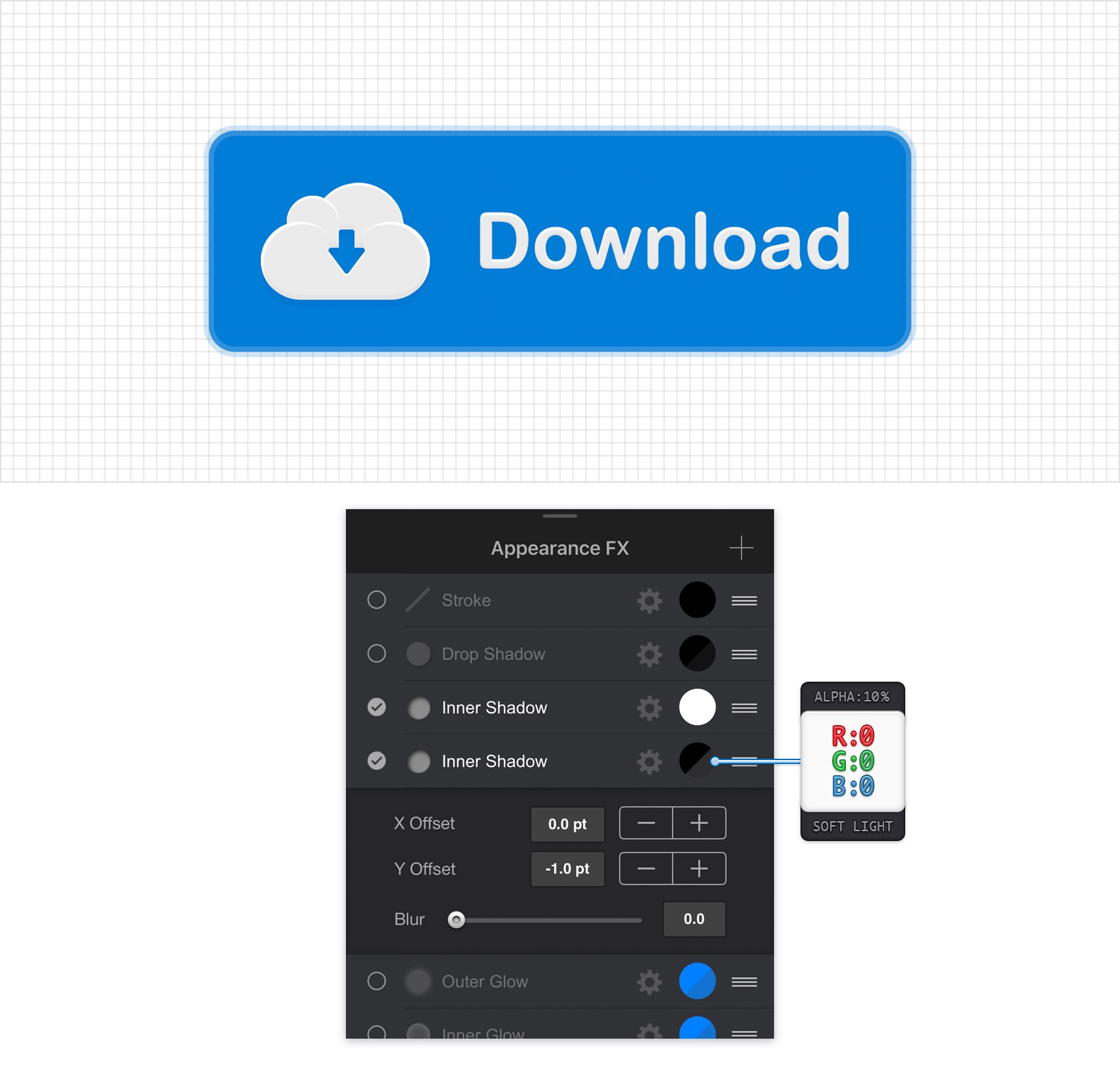

Make sure that your cloud icon stays selected, keep focusing on the Effects pane and add a second Inner Shadow effect using that same plus button. Select the new effect and enter the attributes shown in the following image.

Step 21

Make sure that your cloud icon stays selected and keep focusing on the Effects pane.

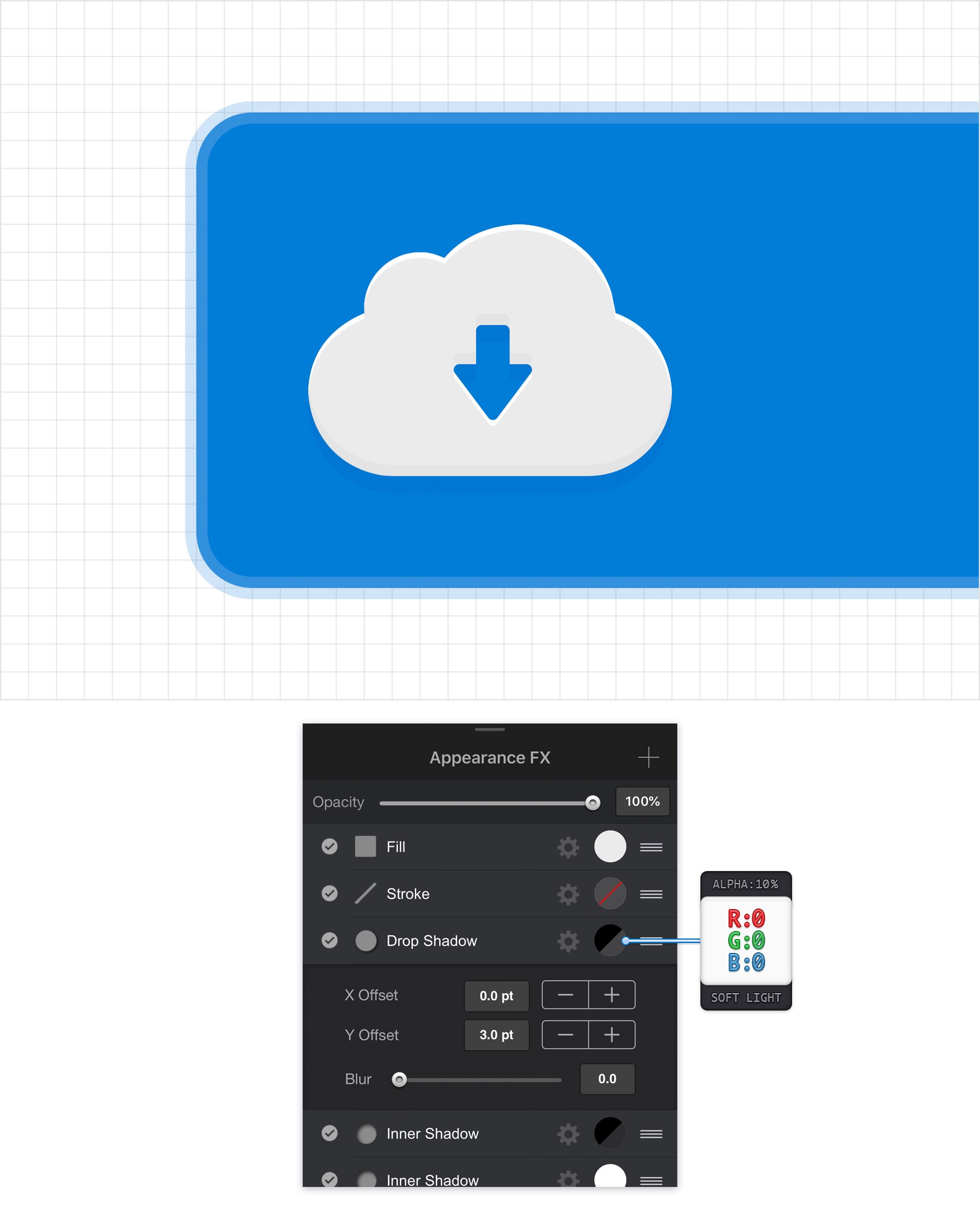

Activate the existing Drop Shadow, select it and change the Blend Mode to Soft Light. Enter 3 pt in the Y Offset box and 0 pt in the other two boxes. Finally, tap that color well that stands for this new effect, make it black and drag the Alpha slider to 10%.

Step 22

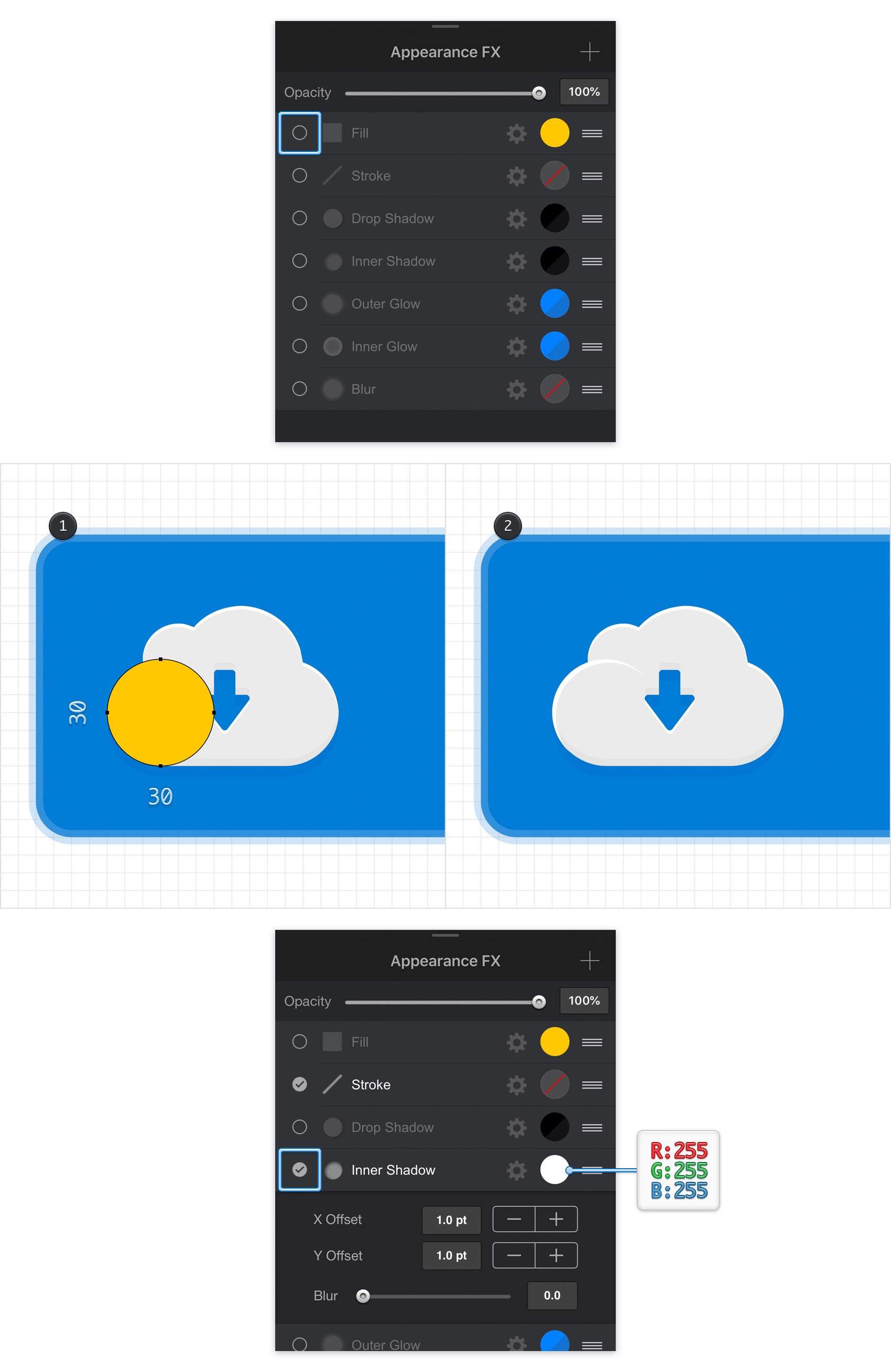

Using the Ellipse Tool, create a 30 px circle and place it exactly as shown in the following image.

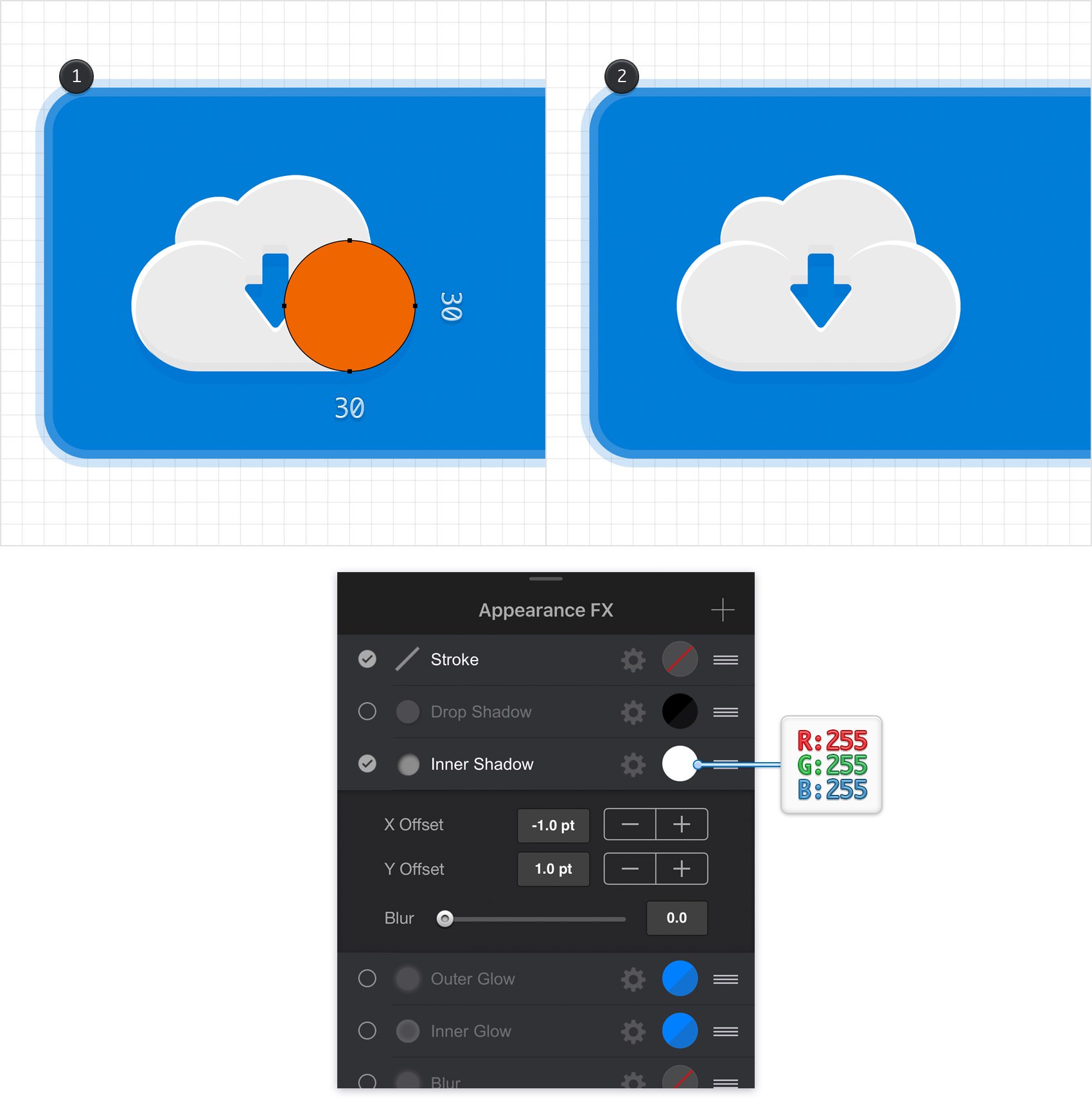

Make sure that this new shape stays selected and focus on the Effects pane. Disable the Fill and then enable the Inner Shadow and select it. Enter 1 pt in the Offset boxes, set the Blur to 0 and then tap the color well and set it to white (R=255 G=255 B=255).

Step 23

Using the Ellipse Tool, create another 30 px circle and place it exactly as shown in the following image.

Make sure that this new shape stays selected and focus on the Effects pane. Disable the Fill and then enable the Inner Shadow effect and enter the attributes shown in the following image.

Step 24

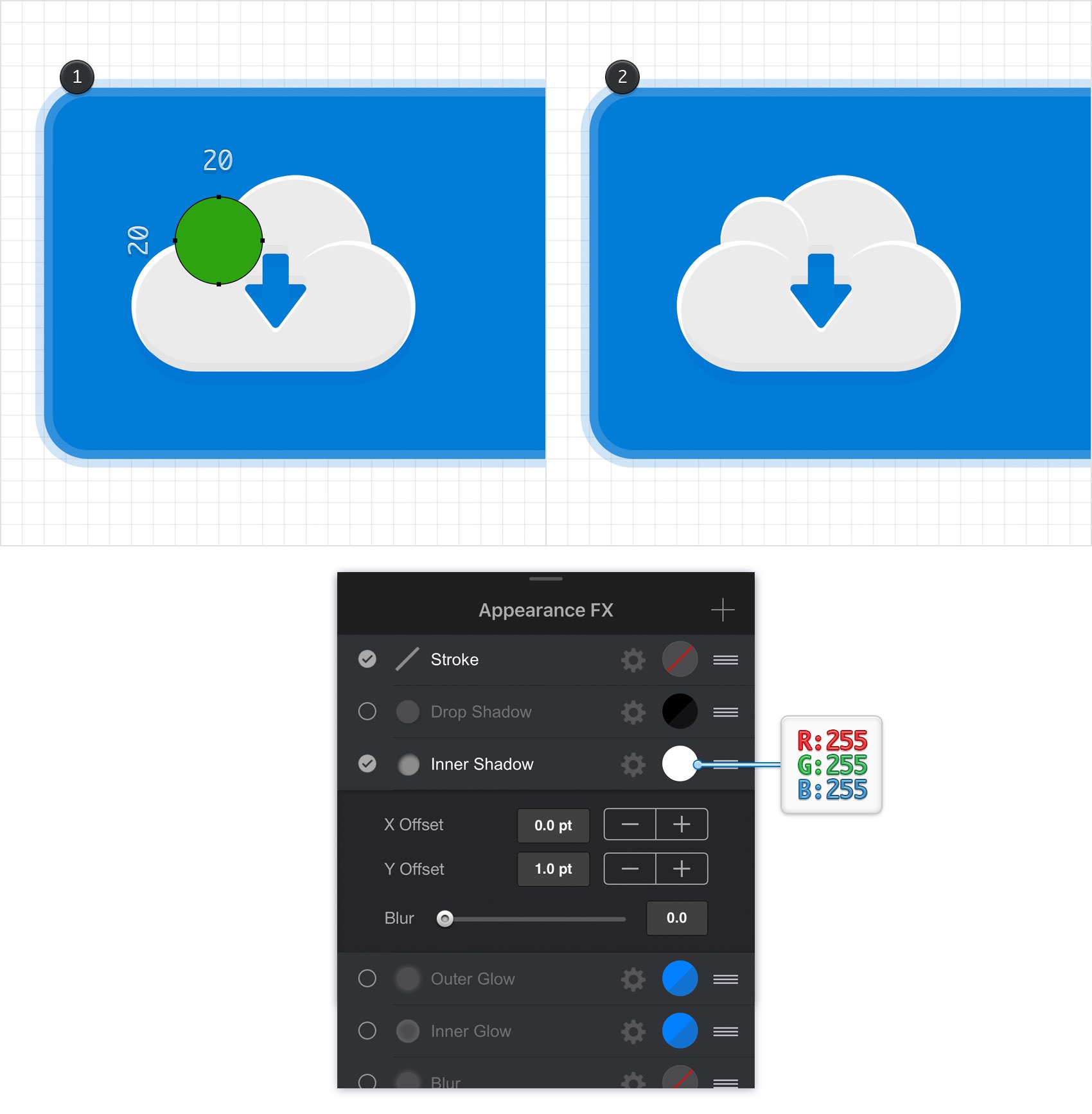

Using the Ellipse Tool, create a 20 px circle and place it exactly as shown in the following image.

Make sure that this new shape stays selected and focus on the Effects pane. Disable the Fill and then enable the Inner Shadow effect and enter the attributes shown in the following image.

Step 25

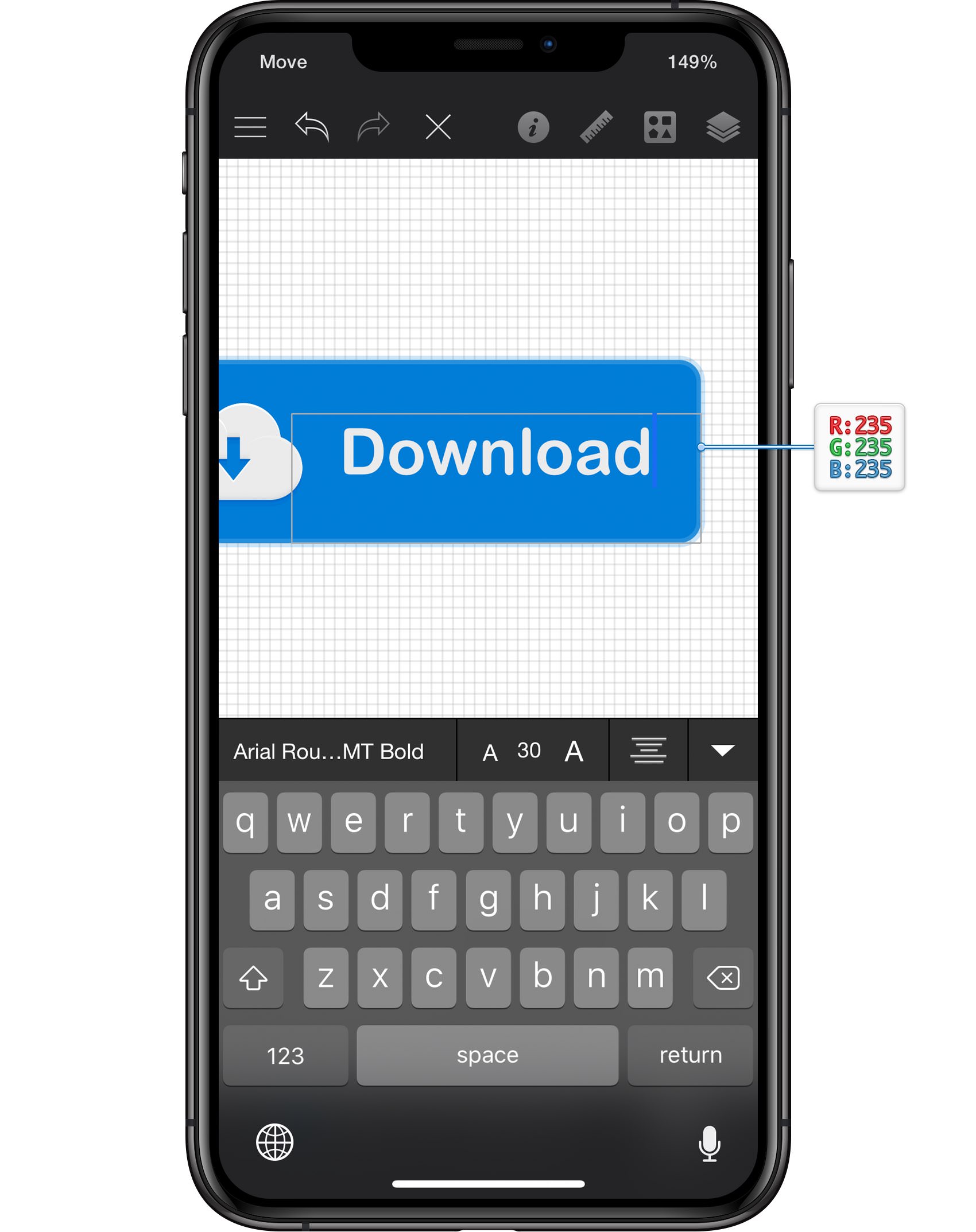

Tap the Text Tool from your Toolbar and then double tap inside the newly created text area to add your text. Select the Arial Rounded MT Bold font, set the size at 30 and then simply add the "Download" piece of text. Using the Move Tool, select your piece of text, place it as shown in the following image and make sure that the color is set to R=235 G=235 B=235.

Step 26

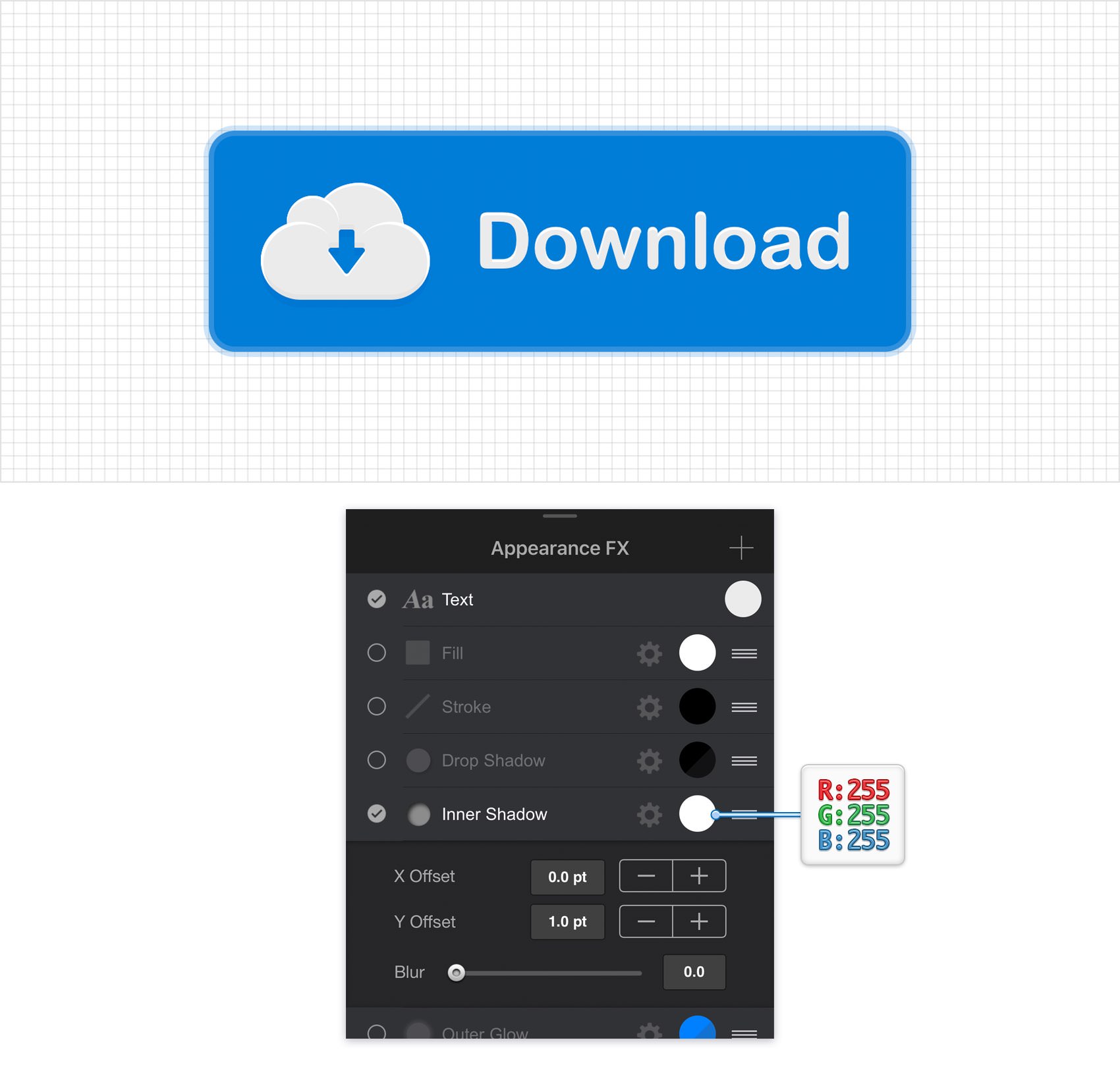

Make sure that your piece of text is still selected, focus on the Effects pane and activate the existing Inner Shadow effect. Select it and enter the attributes shown in the following image.

Step 27

Make sure that your piece of text is still selected, keep focusing on the Effects pane and add a second Inner Shadow. Select this new effect and enter the attributes shown in the following image.

Step 28

Make sure that your piece of text is still selected, keep focusing on the Effects pane and activate the Drop Shadow. Select this effect and enter the attributes shown in the following image.

Step 29

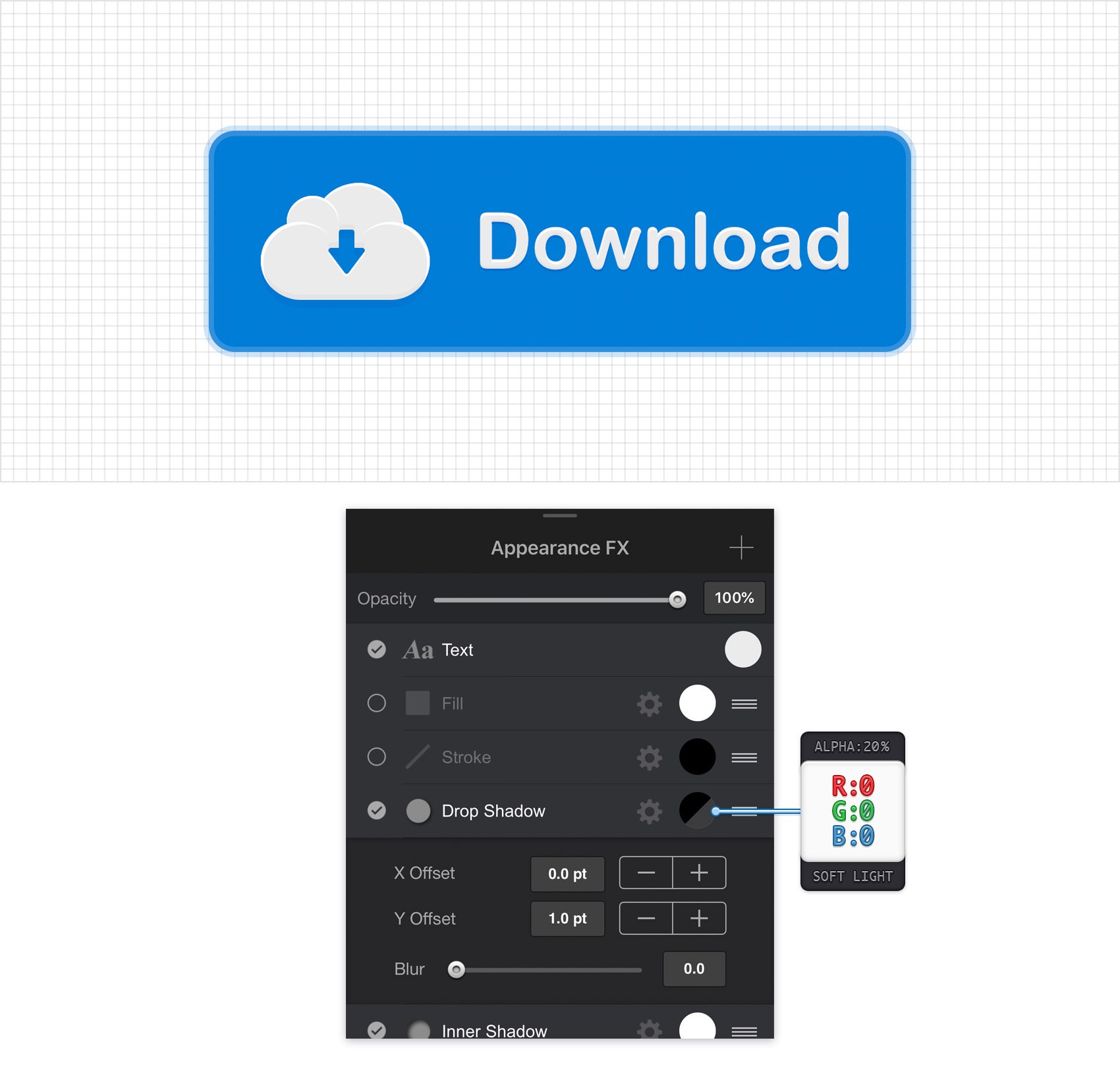

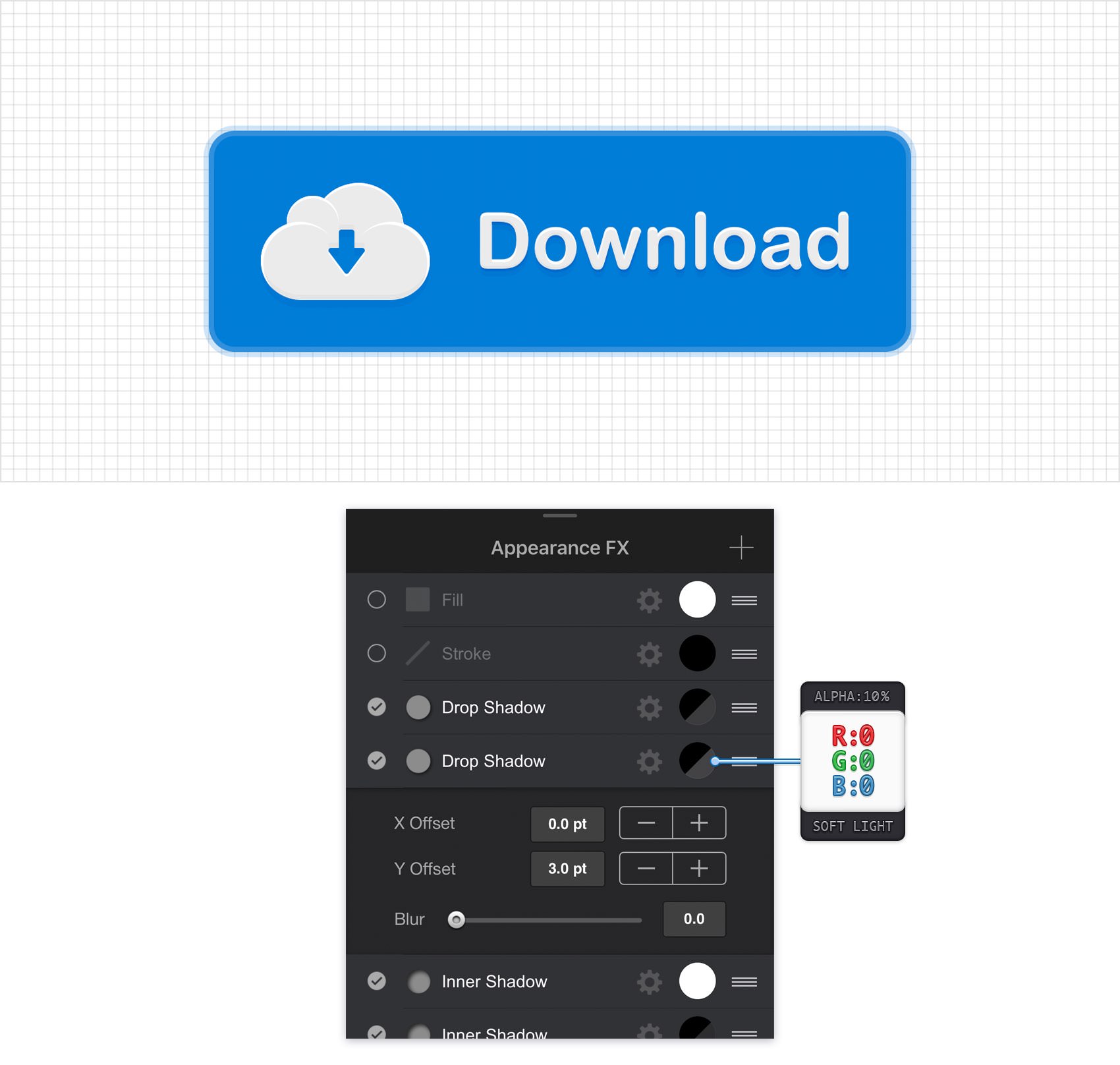

Make sure that your piece of text is still selected, keep focusing on the Effects pane and add a second Drop Shadow. Select this new effect and enter the attributes shown in the following image.

Step 30

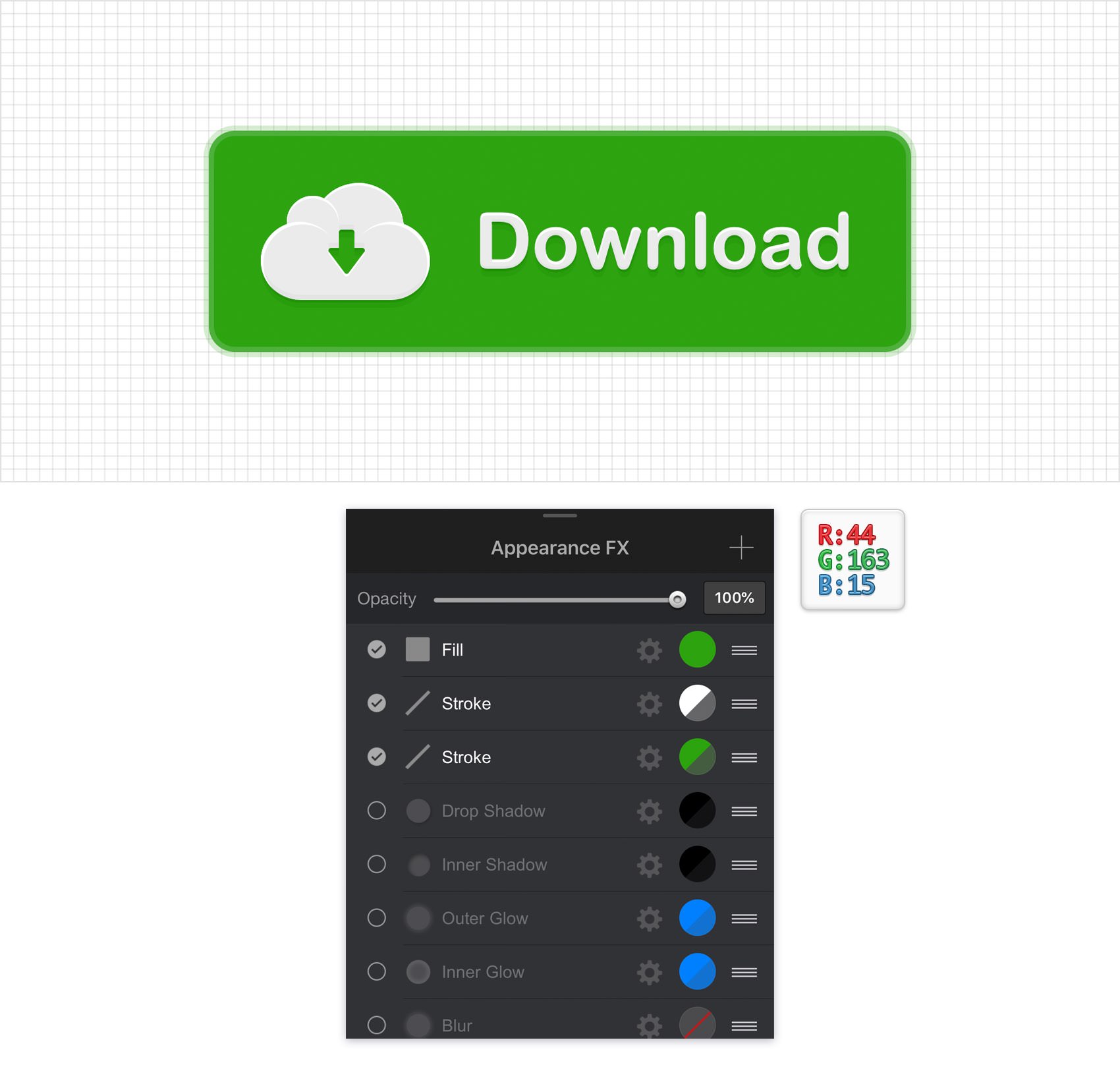

Finally, feel free to try different colors for your button. Select your blue rounded rectangle, focus on the Effects pane and simply replace that blue with the colors shown in the following images or any other color.

Finished Design

Congratulations, you've finished the tutorial! Hope you've enjoyed learning some of the techniques and processes presented in these steps. As always, feel free to adjust the final design and make it your own.

Graphic File: downloadbutton.idraw
